Custom PCTFE Parts: Precision Machining for Demanding Environments
As a leading custom PCTFE parts manufacturer in China, we specialize in precision machining and fabrication of complex PCTFE (Polychlorotrifluoroethylene) components from high-quality PCTFE rod and PCTFE sheet stock. Whether you need a single PCTFE prototype or a full production run, our advanced CNC PCTFE machining capabilities and expert technical support ensure your parts meet the tightest tolerances and most demanding specifications.
PCTFE, also known as Kel-F, is a challenging material to machine due to its unique properties. Our experienced team has mastered the techniques required to produce intricate geometries, tight tolerances (±0.001"), and superior surface finishes in this premium fluoropolymer. From small batch PCTFE machining to large-scale production, we deliver consistent quality and fast turnaround times.
Our PCTFE Machining Service and Fabrication Capabilities
We offer comprehensive PCTFE machining services using state-of-the-art CNC equipment and specialized tooling designed for fluoropolymer materials. Our expertise in machining this difficult material ensures optimal results for even the most complex designs.

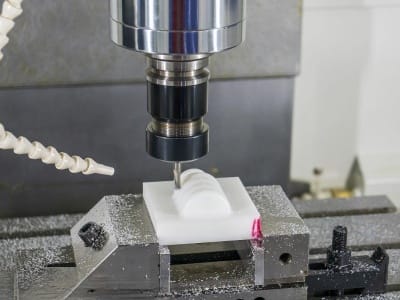

PCTFE CNC Milling
Multi-axis CNC milling for complex geometries, pockets, slots, and contoured surfaces. Capable of machining custom PCTFE parts with intricate features and tight tolerances down to ±0.001".
- 3-axis and 5-axis CNC milling
- Complex contours and 3D shapes
- Precision pockets and slots
- Surface finish Ra 0.4-1.6 μm

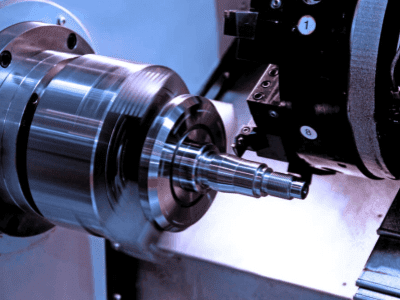

PCTFE CNC Turning
Precision turning operations for cylindrical PCTFE parts including PCTFE shafts, PCTFE bushings, PCTFE sleeves, and PCTFE valve components. Ideal for producing high-precision round parts from PCTFE rod stock.
- OD/ID turning operations
- Threading (internal & external)
- Grooving and parting
- Diameter tolerance ±0.001"

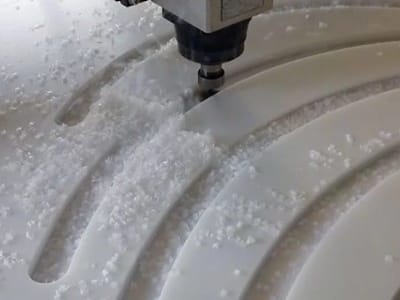

PCTFE Drilling & Boring
Precision drilling and boring operations for holes, bores, and internal features. Specialized techniques prevent chipping and ensure clean, accurate holes in PCTFE fabrication.
- Precision hole drilling (0.5-50mm)
- Deep hole drilling capabilities
- Reaming for tight tolerances
- Counterboring and countersinking

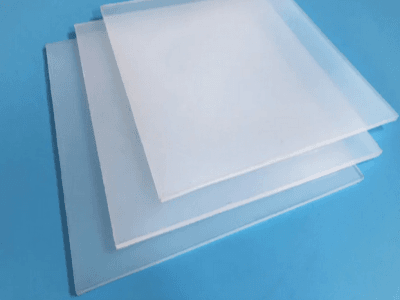

PCTFE Cutting & Sawing
Precision cutting of PCTFE sheet and PCTFE rod stock to size. Clean, burr-free cuts that minimize material waste and provide excellent starting blanks for further machining operations.
- Band saw cutting
- Precision saw cutting
- Water jet cutting (for sheets)
- Minimal material waste
PCTFE Surface Finishing
Various surface finishing options to meet your specific requirements for custom Kel-F parts. From standard machined finishes to polished optical-quality surfaces.
- Standard machined finish
- Fine machining (Ra 0.4 μm)
- Polishing for optical clarity
- Deburring and edge breaking

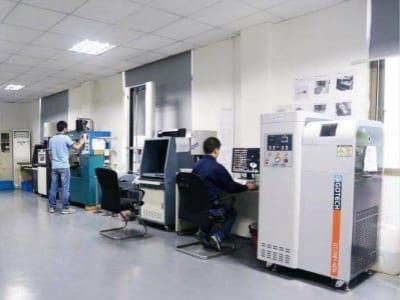

PCTFE Quality Inspection
Comprehensive quality control using precision measuring equipment. Every CNC PCTFE part is inspected to ensure it meets your specifications and our quality standards.
- CMM (Coordinate Measuring Machine)
- Optical comparators
- Micrometers and calipers
- First article inspection reports
Why PCTFE Machining Service Requires Specialized Expertise
PCTFE machining presents unique challenges that require specialized knowledge and experience. Unlike softer plastics, PCTFE's high strength and low coefficient of friction demand specific tooling, cutting speeds, and techniques to achieve optimal results.
- Tool Selection: We use carbide and diamond-coated tools specifically designed for fluoropolymers to prevent chipping and achieve clean cuts.
- Cutting Parameters: Optimized feed rates and spindle speeds prevent heat buildup that can affect dimensional stability.
- Fixturing: Specialized work-holding prevents part distortion and ensures consistent tolerances across production runs.
- Coolant Management: Proper cooling techniques maintain material properties and extend tool life.
- Stress Relief: Understanding PCTFE's thermal properties allows us to minimize internal stresses during machining.
Industries We Serve with Custom PCTFE Parts
Our precision machined PCTFE parts manufacturer capabilities serve diverse industries requiring high-performance fluoropolymer components. From aerospace to pharmaceutical applications, we deliver precision-machined PCTFE parts that meet the most stringent industry standards.
Aerospace & Defense
Oxygen system PCTFE components, PCTFE valve seats, PCTFE seals, and PCTFE insulators for aircraft and spacecraft applications. PCTFE for oxygen service meets stringent safety requirements.
Semiconductor Manufacturing
Process PCTFE chamber components, PCTFE wafer handling parts, and PCTFE chemical delivery system components requiring ultra-high purity and chemical resistance.
Chemical Processing
PCTFE valve components, PCTFE pump parts, PCTFE seals, and PCTFE gaskets for handling aggressive chemicals, acids, and solvents at high pressures and temperatures.
Medical & Pharmaceutical
PCTFE surgical instrument components, PCTFE drug delivery system parts, and PCTFE analytical equipment components requiring biocompatibility and chemical inertness.
Optical & Photonics
PCTFE lens mounts, PCTFE optical windows, PCTFE light guides, and precision positioning PCTFE components leveraging PCTFE's optical clarity and dimensional stability.
Oil & Gas
Downhole tool PCTFE components, PCTFE wellhead seals, PCTFE valve seats, and PCTFE instrumentation parts for harsh environments with extreme pressures and corrosive media.
Analytical Instruments
PCTFE chromatography components, PCTFE sample handling parts, and PCTFE flow path components requiring chemical inertness and low extractables.
Electronics & Electrical
PCTFE insulators, PCTFE standoffs, PCTFE bushings, and PCTFE connector components requiring excellent dielectric properties and thermal stability.
The Precision Machined PCTFE Components Manufacturing Process
Our streamlined PCTFE fabrication process ensures fast turnaround times, consistent quality, and transparent communication from initial inquiry to final delivery. Whether you need a PCTFE prototype or full production run, we make the process simple and efficient.
Submit Your Requirements
Provide your technical drawings (2D/3D CAD files), specifications, quantity requirements, and any special requirements of PCTFE/Kel-F machined components. Our team reviews your design for manufacturability and provides feedback.
- Accept CAD formats: STEP, IGES, DWG, DXF, PDF
- Free Design for Manufacturability (DFM) review
- Technical consultation available
- NDA protection for your designs
Material Selection & Quotation
We help you select the optimal PCTFE grade and form (rod or sheet) for your application. You'll receive a detailed quotation including material costs, machining costs, lead time, and shipping options.
- Virgin PCTFE material (Kel-F equivalent)
- Various grades available (standard, medical, optical)
- Transparent pricing breakdown
- Typical quote turnaround: 24-48 hours
Precision CNC Machining
Upon order confirmation, our skilled machinists program and set up the CNC equipment with specialized tooling for PCTFE. We use optimized cutting parameters to ensure dimensional accuracy and surface finish quality.
- Advanced CNC machining centers
- Specialized fluoropolymer tooling
- Climate-controlled machining environment
- Real-time production monitoring
Quality Inspection & Testing
Every custom PCTFE part undergoes rigorous inspection using precision measuring equipment. We verify all critical dimensions, tolerances, and surface finish requirements against your specifications.
- 100% dimensional inspection
- CMM measurement for complex geometries
- First Article Inspection Report (FAIR) available
- Material certification provided
Packaging & Delivery
Precision machined PCTFE parts are carefully cleaned, packaged to prevent damage during shipping, and delivered according to your preferred method. We provide tracking information and documentation for your records.
- Protective packaging for safe transit
- Express shipping options available
- Complete documentation package
- Global shipping experience
Expert Design for Manufacturability (DFM) Support
Our engineering team brings decades of experience in PCTFE machining and can provide valuable Design for Manufacturability (DFM) recommendations to optimize your parts for cost, performance, and production efficiency.
How Our DFM Support Helps You:
- Cost Optimization: Identify design features that can be simplified or modified to reduce machining time and material waste without compromising functionality.
- Tolerance Guidance: Recommend appropriate tolerances based on PCTFE's material properties and machining capabilities, avoiding unnecessarily tight tolerances that increase costs.
- Feature Feasibility: Advise on the machinability of specific features (undercuts, thin walls, deep holes) and suggest alternative designs if needed.
- Material Selection: Help you choose the right PCTFE grade and form factor (rod vs. sheet) to minimize material costs and machining complexity.
- Surface Finish Recommendations: Guide you on achievable surface finishes and their impact on cost, helping you specify only what's necessary for your application.
- Assembly Considerations: Suggest design modifications that facilitate easier assembly or integration with other components.
Our DFM Review Process:
- Submit your CAD files and technical requirements
- Our engineers analyze the design for manufacturability
- Receive detailed feedback with specific recommendations
- Collaborate on design refinements if needed
- Finalize design and proceed to quotation
Note: DFM review is provided free of charge for all quotation requests. We're committed to helping you achieve the best possible outcome for your custom PCTFE parts project.
Our engineering team provides expert DFM guidance to optimize your PCTFE parts for manufacturing
Why Choose Us as Your CNC PCTFE Parts Manufacturer
Specialized Expertise
Decades of experience machining PCTFE and other challenging fluoropolymers. We understand the unique requirements of this material.
Tight Tolerances
Capable of achieving tolerances down to ±0.001" (±0.025mm) with excellent repeatability across production runs.
Advanced Equipment
State-of-the-art CNC machining centers with specialized tooling and fixtures designed specifically for fluoropolymers.
Fast Turnaround
Quick prototyping services with typical lead times of 1-2 weeks for prototypes and 2-4 weeks for production runs.
Quality Assurance
Comprehensive inspection procedures and documentation including FAIRs, material certifications, and dimensional reports.
Technical Support
Dedicated engineering support throughout your project, from initial design review to post-delivery technical assistance.
Flexible Quantities
From single prototypes to large production runs. We accommodate small batch PCTFE machining and volume production.
Global Shipping
Extensive experience shipping machine PCTFE parts China to customers worldwide with reliable logistics partners.
PCTFE Material Grades We Machine
We work with various grades of PCTFE (Kel-F equivalent) to meet different application requirements. All materials are sourced from reputable suppliers with full traceability and certification.
Standard Grade PCTFE
General-purpose PCTFE suitable for most industrial applications requiring chemical resistance, low permeability, and mechanical strength.
- Excellent chemical resistance
- Lowest gas permeability of all plastics
- High compressive strength
- Temperature range: -240°C to +200°C
Medical/Pharmaceutical Grade
USP Class VI compliant PCTFE for medical devices, pharmaceutical processing, and biotech applications requiring biocompatibility.
- USP Class VI certified
- Low extractables and leachables
- Sterilization compatible
- Full material traceability
Optical Grade PCTFE
High-clarity PCTFE for optical applications, windows, lenses, and applications where transparency is critical.
- Excellent optical clarity
- Low haze and high light transmission
- Polishable to optical quality
- UV resistant
