Silicone Coated Fiberglass Fabric Manufacturer| Heat & Chemical Resistant
Industrial Grade Silicone Glass Cloth for Welding Blankets, Expansion Joints & Insulation – 600°F Rated
Silicone Fiberglass Cloth/Silicone Glass Fabric for Welding Blankets & Insulation | ASTM D120 Compliant Industrial Coated Textile Manufacturer in China
Premium Silicone Fiberglass Fabric Solutions - Flexible & Heat-Resistant Fabric
Our silicone coated fiberglass fabric combines the strength of woven glass fiber with the flexibility and chemical resistance of silicone rubber coating. Engineered for demanding industrial applications requiring heat resistant fabric performance up to 600°F (315°C).
Key Performance Features of Silicone Coated Fabric
- Temperature Range: -65°F to 600°F (-54°C to 315°C)
- Chemical Resistance: Acids, alkalis, and solvents
- Flexibility: Maintains pliability at extreme temperatures
- Durability: Superior tear and puncture resistance
- Compliance: ASTM D120 and Mil-I-24244 standards
Technical Specifications & Parameters of Silicone Coated Glass Fabric
| Parameter | Standard Grade | Heavy Duty | Ultra-Flex | High-Temp | Test Method |
|---|---|---|---|---|---|
| Silicone Thickness | 0.2mm | 0.5mm | 0.3mm | 1.0mm | ASTM D374 |
| Total Thickness | 0.43mm | 0.73mm | 0.53mm | 1.23mm | ASTM D374 |
| Weight | 520 g/m² | 780 g/m² | 620 g/m² | 1200 g/m² | ASTM D3776 |
| Peel Strength | ≥8 N/cm | ≥12 N/cm | ≥10 N/cm | ≥15 N/cm | ASTM D413 |
| Tensile Strength | 1200 N/5cm | 1800 N/5cm | 1400 N/5cm | 2200 N/5cm | ASTM D5034 |
| Operating Temp | -65°F to 500°F | -65°F to 550°F | -65°F to 500°F | -65°F to 600°F | ASTM D2240 |
| Dielectric Strength | 25 kV/mm | 20 kV/mm | 22 kV/mm | 18 kV/mm | ASTM D149 |

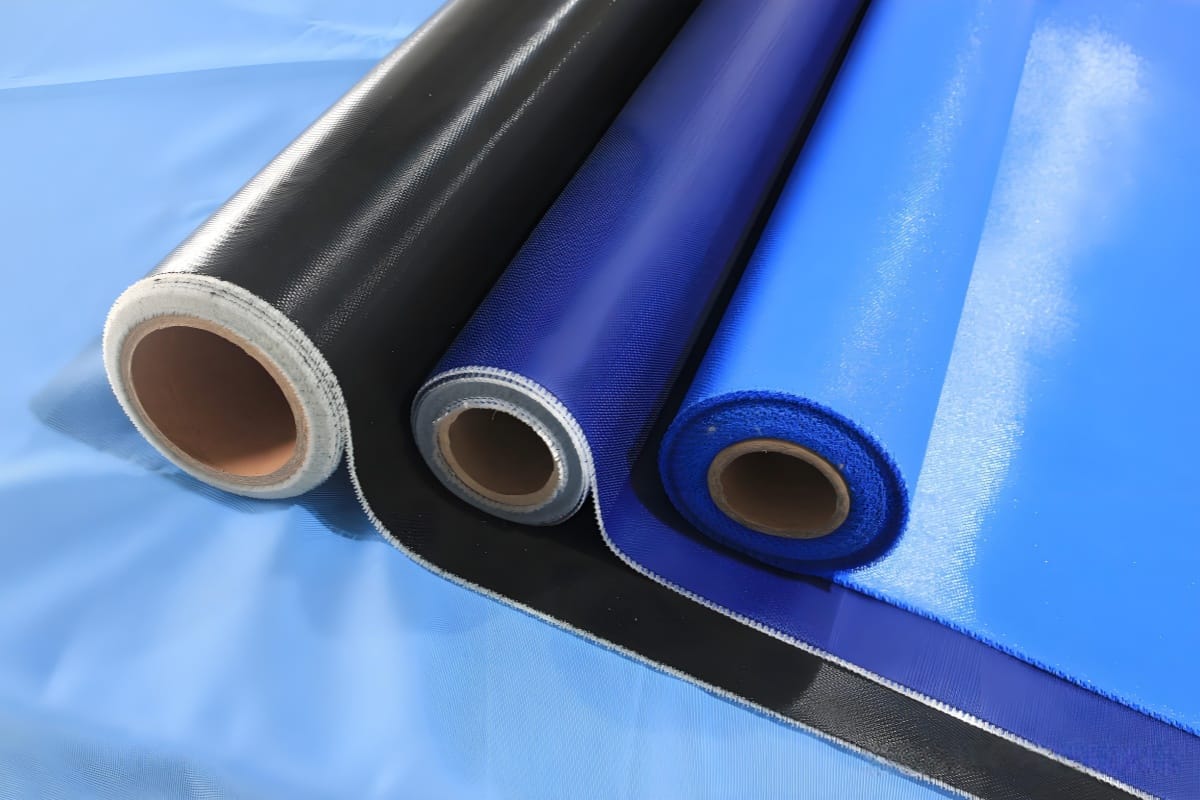

Silicone Fiberglass Fabric Product Range

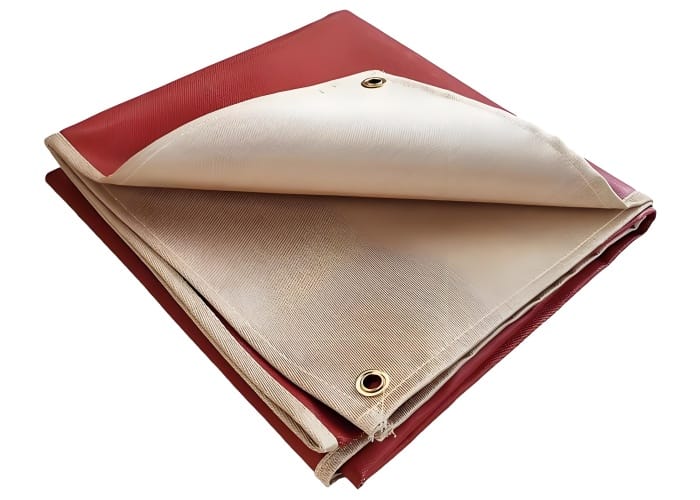

Welding Blanket Material
Heavy-duty welding blanket material with superior spatter resistance and flexibility. Ideal for protecting equipment and personnel during welding operations.
- Spatter resistant coating
- Flexible at high temperatures
- Easy to handle and position
- Multiple thickness options

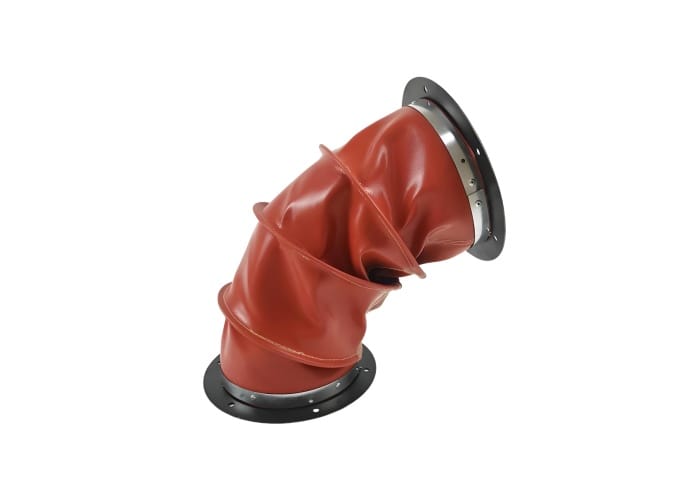

Expansion Joint Material
Flexible expansion joint material designed for high-temperature ducting systems. Maintains seal integrity under thermal cycling.
- Thermal cycling resistance
- Gas-tight sealing
- Chemical compatibility
- Long service life

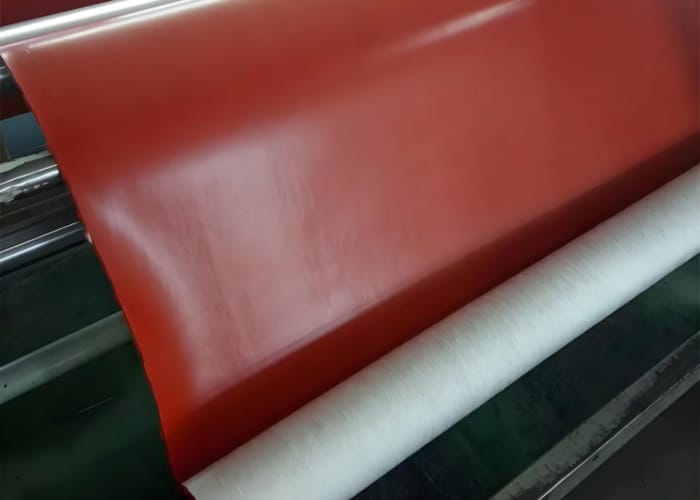

Thermal Insulation Fabric
Heat shield fabric for industrial insulation applications. Provides thermal barrier protection in extreme temperature environments.
- Low thermal conductivity
- Lightweight construction
- Easy installation
- Moisture resistant

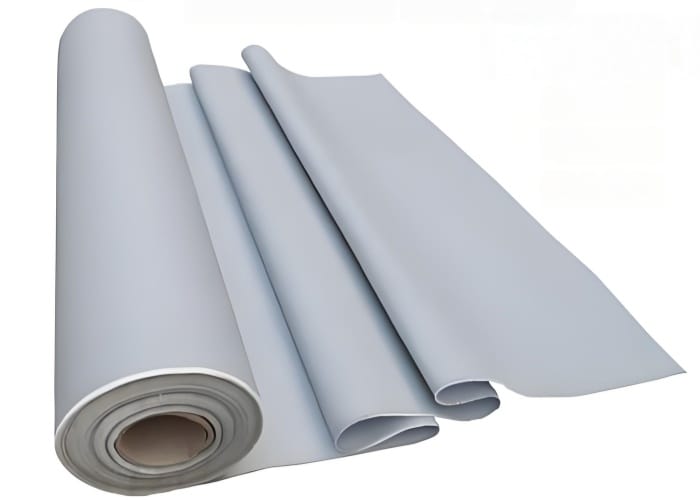

Fire Resistant Fabric
Fire resistant fabric meeting stringent safety standards. Self-extinguishing properties for critical safety applications.
- Self-extinguishing
- Low smoke generation
- Flame spread rating
- Safety certified

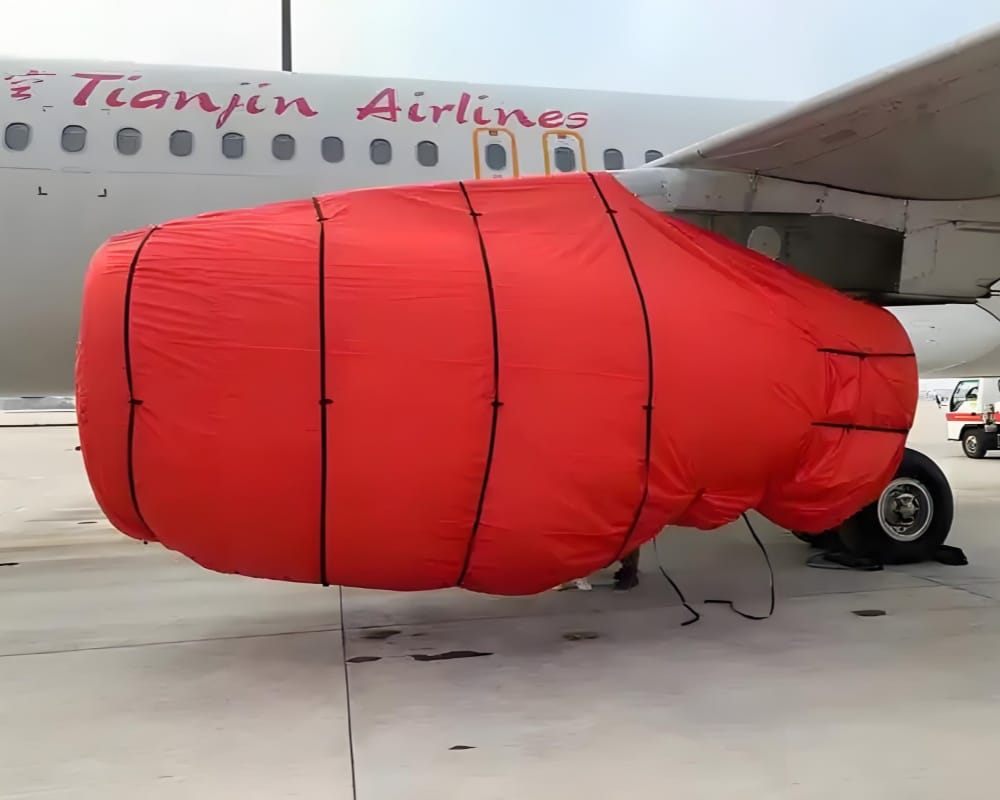

Important Application of Silicone Coated Glass Fabric: Protecting Aircraft During Engine Repairs
Challenge
Aircraft maintenance requires protecting sensitive components from welding spatter and heat damage during engine repairs. Traditional materials often fail under the extreme conditions.
Solution
Our silicone coated glass fabric provides superior protection with:
- 600°F continuous temperature rating
- Excellent conformability around complex shapes
- Chemical resistance to aviation fluids
- Mil-I-24244 compliance for aerospace applications
Results
Reduced component damage by 95% and maintenance time by 30%. The fabric's flexibility allows easy positioning around engine components while maintaining protective integrity.
Industrial Applications of Silicone Rubber Coated Fabric
Manufacturing
Silicone coated industrial insulation fabric for furnace linings, heat shields, and equipment protection in manufacturing environments.
Aerospace
Mil-I-24244 compliant materials for aircraft maintenance, engine bay protection, and thermal barriers in aerospace applications.
Welding & Fabrication
Silicone coated welding protection cloth for spatter shields, equipment covers, and personnel protection during fabrication operations.
Power Generation
High-temperature silicone ducting, silicone expansion joints, and silicone insulation for power plants and energy generation facilities.
Construction
Silicone fire resistant fabric for building protection, temporary barriers, and safety applications in construction projects.
Marine
Silicone chemical resistant and weatherproof materials for marine applications, including engine room protection and deck coverings.
Material Performance Comparison
| Property | Silicone Glass | PTFE Glass | Ceramic Fiber | Aramid Fabric |
|---|---|---|---|---|
| Max Temperature | 600°F | 500°F | 2300°F | 400°F |
| Flexibility | Excellent | Good | Poor | Good |
| Chemical Resistance | Excellent | Excellent | Good | Fair |
| Durability | High | High | Medium | High |
| Cost Effectiveness | High | Medium | Low | Medium |
Quality Standards & Certifications of Silicone Fiberglass Cloth
ASTM D120 Compliance
Standard specification for rubber insulating gloves - ensures electrical safety and material integrity.
Mil-I-24244 Certified
Military specification for insulation materials - meets stringent aerospace and defense requirements.
ISO 9001:2015
Quality management system certification ensuring consistent product quality and continuous improvement.
UL 94 V-0 Rating
Flame retardancy classification - self-extinguishing properties for enhanced safety applications.

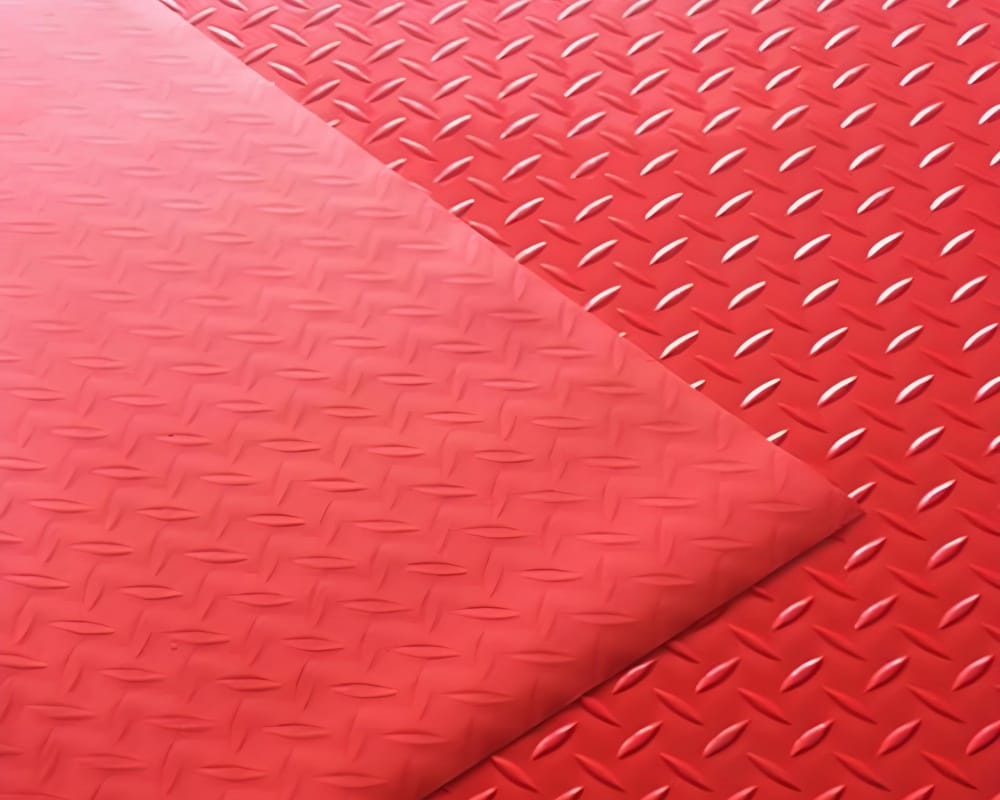

Custom Silicone Coated Fiberglass Solutions
As a leading silicone coated fabric manufacturer, we offer comprehensive customization services to meet your specific application requirements.
Thickness Customization
Silicone coating thickness from 0.2mm to 1.5mm based on your temperature and flexibility requirements.
Width & Length
Standard widths up to 2000mm, custom lengths available. Roll or sheet format options.
Color Options
Standard colors: Red, Gray, Black, White. Custom colors available for large orders.
Special Treatments
Anti-static, UV resistant, or enhanced chemical resistance treatments available.
