Precision PFA Injection Molding Services for Critical Applications
PFA Injection Molded Fittings & Valves Manufacturer In China
Leading PFA Injection Molding Products like PFA Fittings & Valves Manufacturer in China for Euro, North America and Asia market. We specialize in custom PFA molding of precision components including PFA ball valve for sulfuric acid applications and threaded PFA fitting with NPT connection. Our pharmaceutical PFA components and SEMI compliant PFA connectors serve as the ideal alternative to Swagelok PFA fittings.

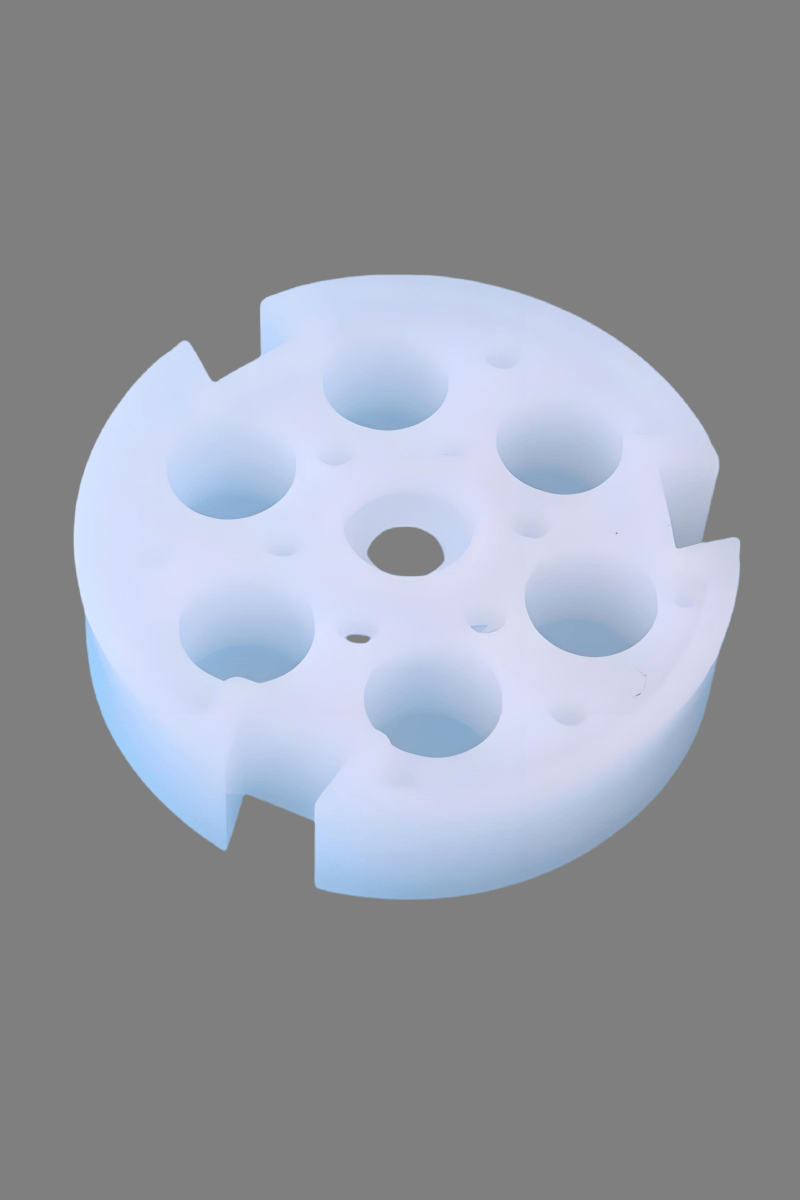

Precision PFA injection molding Components – Chemical & High-Purity Solutions
Our precision PFA molded components are engineered for the most demanding chemical and high-purity applications. Using advanced injection molding technology, we manufacture custom PFA molding solutions that replace Teflon PFA parts with superior performance, zero dead volume design, and exceptional chemical resistance for pharmaceutical PFA components and SEMI compliant PFA connectors.
PFA Molded Components Specifications
| Parameter | Standard Grade | High-Purity Grade |
|---|---|---|
| Material Grade | Virgin PFA resin | Ultra-pure PFA resin |
| Surface Finish | Ra ≤ 1.6 μm | Ra ≤ 0.8 μm |
| Dimensional Tolerance | ±0.1mm | ±0.05mm |
| Operating Temperature | -200°C to +260°C | -200°C to +260°C |
| Pressure Rating | Up to 40 bar @ 150°C | Up to 35 bar @ 150°C |
| Extractable Ions | ≤5 ppb | ≤0.1 ppb |
| Dead Volume | Minimized design | Zero dead volume |
| Compliance | FDA, ISO 9001 | FDA, ISO 13485, SEMI |
Precision PFA Components Applications
- Semiconductor chemical delivery systems
- Pharmaceutical manufacturing equipment
- High-purity chemical processing
- Analytical instrumentation connections
- Biotechnology fluid handling systems
- Ultra-pure water distribution networks
Custom PFA Molding Capabilities
Injection Molding
Complex geometries with tight tolerances
Insert Molding
Metal inserts for threaded connections
Multi-Cavity Molding
High-volume production efficiency
Prototype Development
Rapid prototyping for custom designs

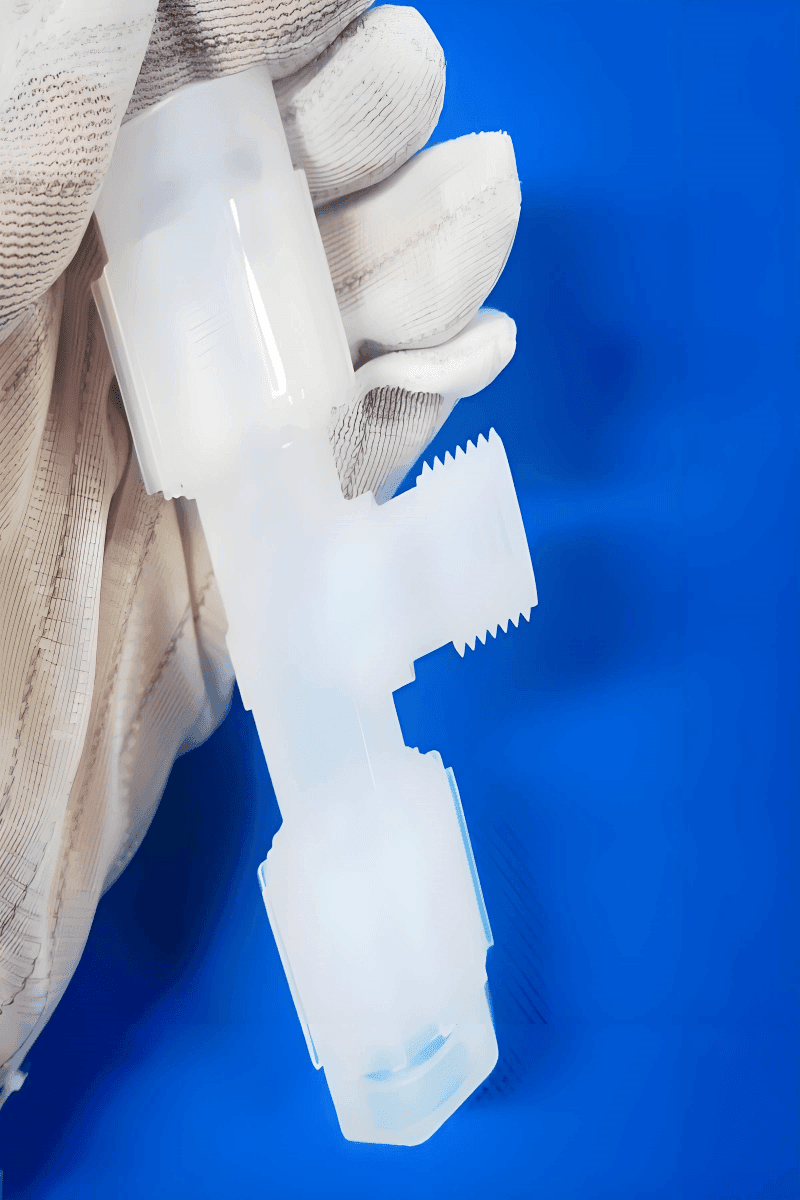

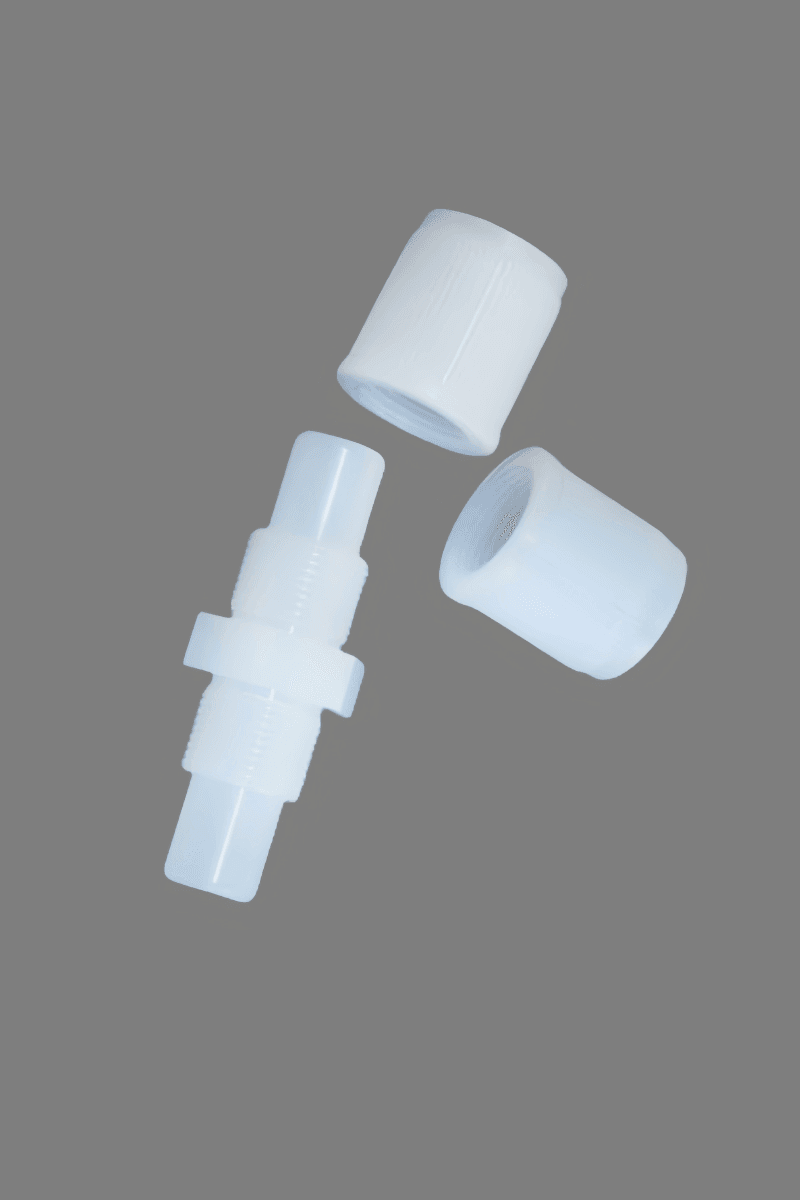

PFA Fittings | Alternative to Swagelok PFA Fittings
Our comprehensive range of PFA fittings provides a superior alternative to Swagelok PFA fittings with enhanced performance and cost-effectiveness. From threaded PFA fitting with NPT connection to complex union tees and crosses, our pharmaceutical PFA components meet the highest industry standards for chemical resistance and purity.
PFA Fittings Specifications
| Fitting Type | Size Range | Connection Type | Pressure Rating |
|---|---|---|---|
| Union Tees | 1/4" to 4" | NPT, BSPT, Compression | 40 bar @ 150°C |
| Elbows (90°/45°) | 1/4" to 4" | NPT, BSPT, Compression | 40 bar @ 150°C |
| Crosses | 1/4" to 2" | NPT, BSPT | 35 bar @ 150°C |
| Ferrule Fittings | 1/8" to 1" | Compression | 50 bar @ 150°C |
| Reducers | 1/4" to 4" | NPT, BSPT | 40 bar @ 150°C |
| Caps & Plugs | 1/8" to 4" | NPT, BSPT | 40 bar @ 150°C |
| Quick Disconnects | 1/4" to 1" | Push-to-connect | 25 bar @ 150°C |
| Bulkhead Fittings | 1/4" to 2" | NPT, Compression | 30 bar @ 150°C |
PFA Fittings Applications
- Chemical processing plant connections
- Semiconductor wet bench systems
- Pharmaceutical fluid transfer lines
- Laboratory analytical equipment
- High-purity gas distribution systems
- Corrosive chemical handling systems
Standards Compliance
ANSI/ASME B16.11
Forged fittings socket-welding and threaded
ISO 4144
Pipe fittings threaded to ISO 7-1
DIN 2999
Pipe threads for tubes and fittings
JIS B0203
Pipe threads for pressure-tight joints

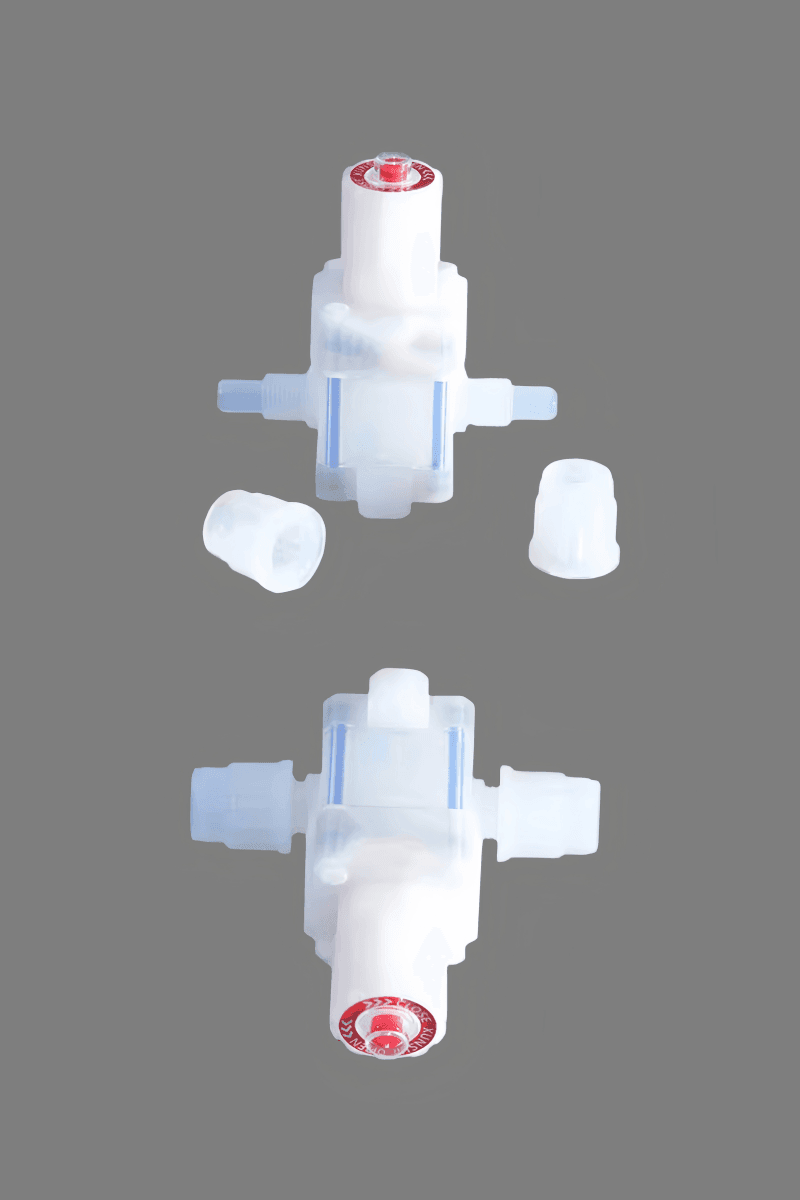

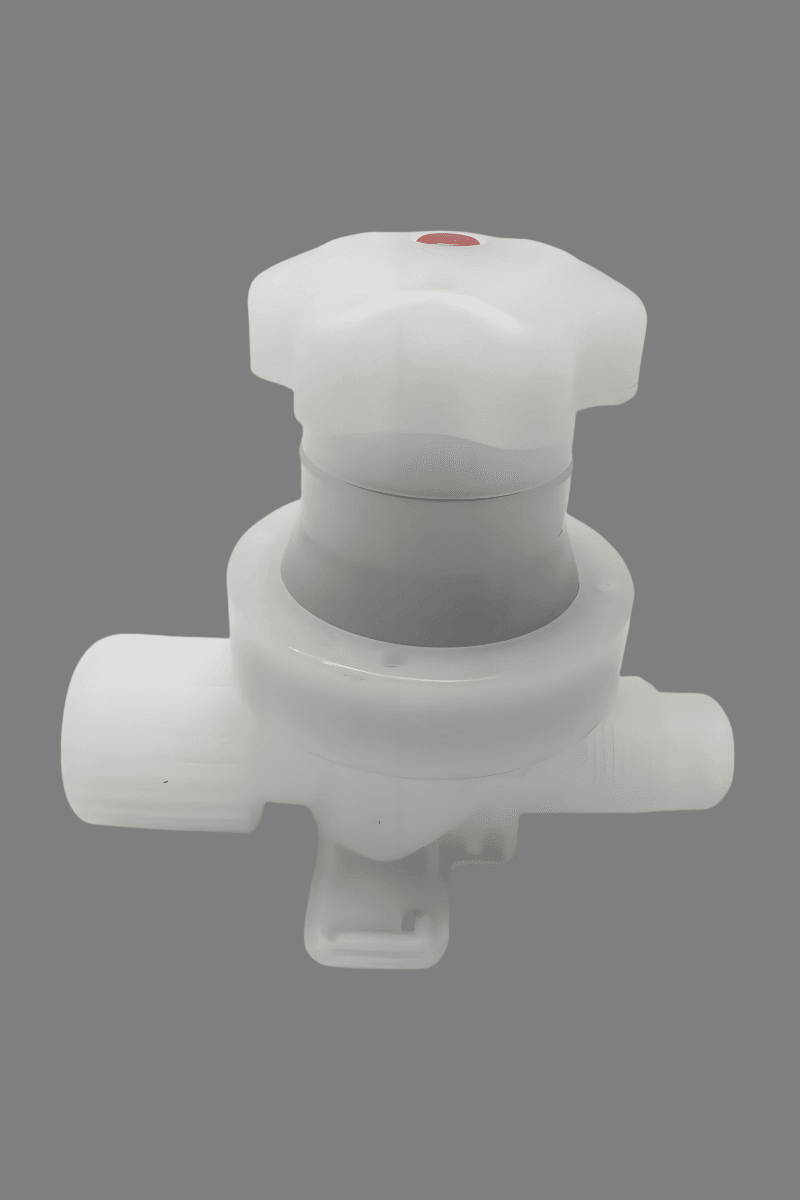

PFA Valves | PFA Ball Valve for Sulfuric Acid Applications
As a leading PFA valve manufacturer, we produce high-performance PFA ball valve for sulfuric acid and other aggressive chemicals. Our valve portfolio includes ball valves, diaphragm valves, and check valves with pressure ratings from 10bar to 40bar @ 150°C, designed to replace Teflon PFA parts with superior reliability and performance.
PFA Valves Specifications
| Valve Type | Size Range | Pressure Rating | Connection Type |
|---|---|---|---|
| Ball Valves (2-way) | 1/4" to 4" | 40 bar @ 150°C | NPT, Flanged, Tri-clamp |
| Ball Valves (3-way) | 1/4" to 2" | 35 bar @ 150°C | NPT, Flanged |
| Diaphragm Valves | 1/2" to 6" | 25 bar @ 150°C | Flanged, Tri-clamp |
| Check Valves | 1/4" to 3" | 30 bar @ 150°C | NPT, Flanged |
| Needle Valves | 1/8" to 1/2" | 50 bar @ 150°C | NPT, Compression |
| Butterfly Valves | 2" to 12" | 16 bar @ 150°C | Flanged, Wafer |
| Solenoid Valves | 1/4" to 1" | 10 bar @ 150°C | NPT, Compression |
| Relief Valves | 1/2" to 2" | 25 bar @ 150°C | NPT, Flanged |
PFA Valves Applications
- Sulfuric acid and aggressive chemical handling
- Semiconductor chemical delivery systems
- Pharmaceutical process control
- High-purity water treatment systems
- Chemical reactor feed control
- Corrosive gas flow control systems
Advanced PFA Valve Features
Zero Dead Volume
100% drainable design prevents contamination
Bubble-Tight Sealing
Class VI shutoff performance
Fire-Safe Design
API 607 compliant for safety applications
Cryogenic Service
Tested to -196°C for LNG applications
Why Choose PFA Injection Molding Valves for Your Chemical Transfer Systems?
Client Challenge
A major pharmaceutical company experienced frequent leakage issues with their PTFE valves in sulfuric acid transfer systems, causing:
- Production downtime and safety concerns
- Frequent valve replacement costs
- Environmental compliance issues
- Maintenance labor overhead
Our PFA Solution
Replaced client's PTFE valves with our PFA diaphragm valves – 0 leaks in 2 years
- Superior chemical resistance to sulfuric acid
- Zero dead volume design prevents buildup
- Bubble-tight sealing performance
- Extended service life reduces maintenance
Results Achieved:
0 leaks in 24 months of continuous operation
75% reduction in maintenance costs
99.8% uptime improvement
PFA Components vs Metal Fittings Cost Analysis
Comprehensive 5-year Total Cost of Ownership (TCO) comparison showing 60% savings when switching from metal fittings to our PFA components in aggressive chemical applications.
5-Year TCO Comparison
Metal Fittings
PFA Components
Key Cost Benefits
Reduced Maintenance
75% less maintenance due to superior chemical resistance
Extended Service Life
5-10x longer service life in aggressive chemicals
Minimal Downtime
Reliable performance reduces unplanned shutdowns
Lower Inventory
Fewer spare parts needed due to reliability
Our PFA Injection Molding Process and Quality Control
Our state-of-the-art manufacturing facility produces SEMI compliant PFA connectors and pharmaceutical PFA components with the highest quality standards. As a trusted PFA supplier in China for Euro, North America and Asia market, we maintain strict quality control and international certifications.

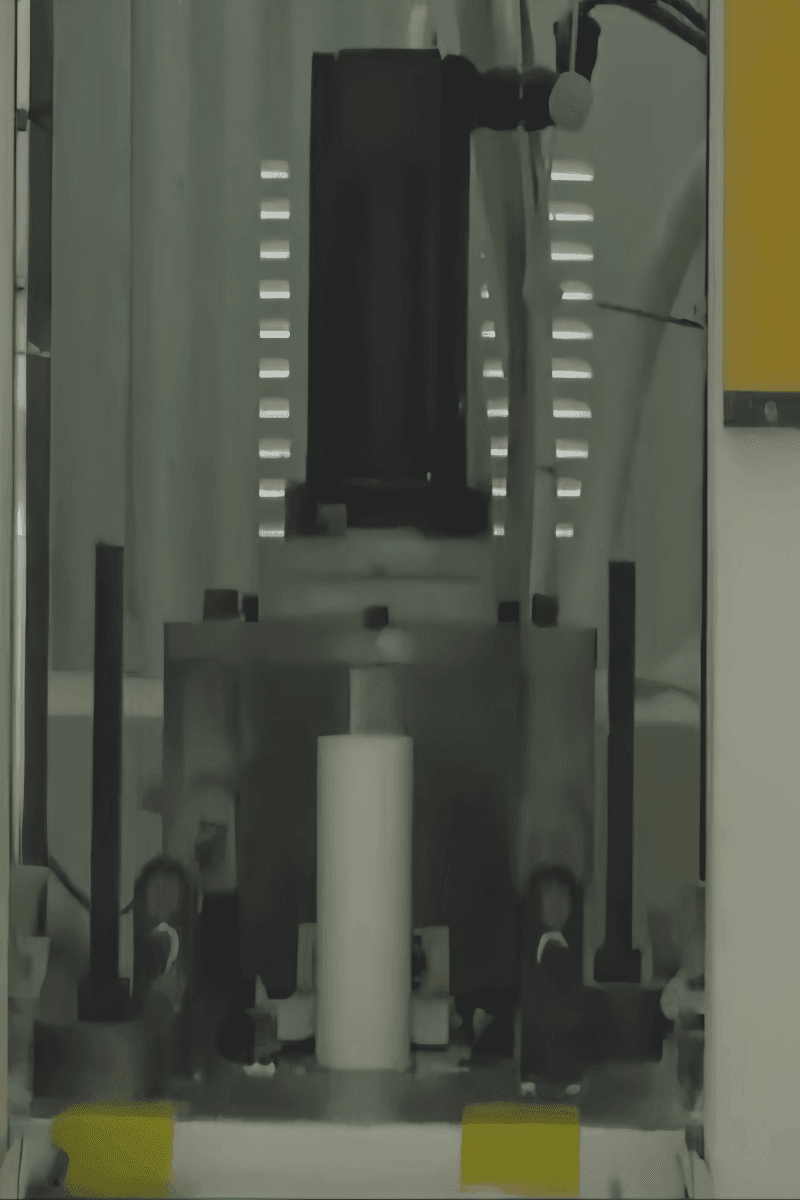

Injection Molding
Advanced injection molding for complex PFA components
- Multi-cavity precision molding
- Insert molding capabilities
- Automated quality control
Clean Room Assembly
ISO Class 7 clean room for valve assembly
- Contamination-free assembly
- Precision torque control
- 100% leak testing

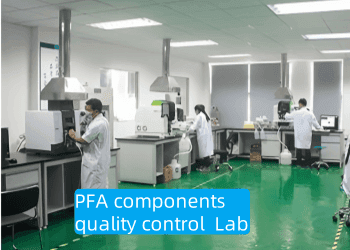

Quality Testing
Comprehensive testing and validation laboratory
- Pressure and leak testing
- Chemical compatibility testing
- Dimensional inspection

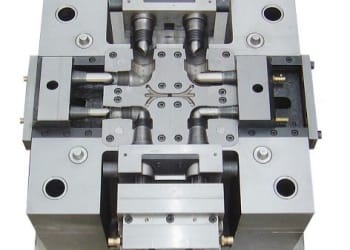

Design Engineering
Custom design and engineering services
- 3D modeling and simulation
- Rapid prototyping
- Application engineering
Global Supply Chain & Market Coverage of Our PFA Injection Molding Parts
As a leading PFA Injection Molding parts supplier in China for Euro, North America and Asia market, we maintain strategic inventory and distribution networks to serve customers worldwide with reliable delivery and competitive pricing for PFA fittings and valves.
Europe Market
Comprehensive PFA fittings supply with full regulatory compliance
- CE marking and REACH compliance
- PED 2014/68/EU pressure equipment directive
- Local technical support and training
- Alternative to Swagelok PFA fittings
North America
FDA compliant PFA valve manufacturer for pharmaceutical applications
- FDA 21 CFR 177.1550 compliance
- ASME B16.34 valve standards
- API 607 fire-safe certification
- Replace Teflon PFA parts with superior performance
Asia Pacific
Regional manufacturing hub for SEMI compliant PFA connectors
- SEMI F57 compliant components
- JIS B2220 flange standards
- Local inventory and fast delivery
- Semiconductor industry partnerships
Quality Certifications & Standards
Our PFA fittings and valves meet the highest international quality standards and industry-specific certifications, ensuring reliable performance and regulatory compliance for pharmaceutical PFA components and SEMI compliant PFA connectors.
ISO 13485:2016
Medical device quality management system for pharmaceutical PFA components
FDA 21 CFR 177.1550
FDA compliant PFA materials for food and pharmaceutical contact
SEMI F57
Semiconductor industry standards for SEMI compliant PFA connectors
API 607
Fire-safe design certification for critical valve applications
Technical Support & Custom Solutions
Application Engineering
Expert guidance on PFA component selection and system design
Custom Molding
Tailored PFA molding solutions for unique applications
Performance Testing
Comprehensive testing and validation services
Technical Documentation
Complete material certificates and compliance documentation
