Precision PEEK Machining Services for Critical Applications
Custom PEEK Machined Parts Manufacturer | PEEK Valves, PEEK Bushing, PEEK Gasket, PEEK Ball, PEEK Screw, PEEK Gears & PEEK Bearings – CNC Machined to ±0.005mm Tolerance
Your Outstanding PEEK Machining Services Provider in China
As a top manufacturer of PEEK machined components from China, most of our PEEK components are exported to Europe, North America, Asian countries with high quality and competitive price.
PEEK Machining Solutions - PEEK Sealing
PEEK Sealing Ring & PEEK Guide Ring
For hydraulic cylinders with superior PV limit performance
PEEK Ball Valve Seat
High-pressure steam compatible PEEK valve seats
PEEK Gasket & PEEK O-Ring
Chemical resistant sealing solutions
Precision Machined PEEK Components
PEEK Gear & PEEK Sprocket
Low moisture absorption for food processing applications
PEEK Bearing & PEEK Bushing
FDA compliant for pharmaceutical mixers

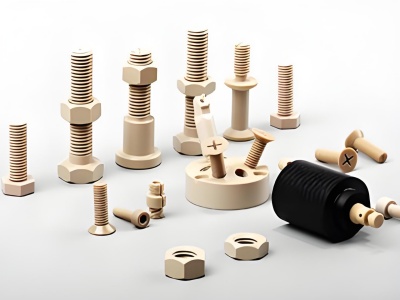

PEEK Nut & PEEK Screw
High-temperature fastening solutions
Our PEEK Machining Edge
5-Axis CNC Machining
Precision machining to ±0.005mm tolerance
- Simultaneous 5-axis processing
- Complex geometry capability
- Reduced setup time
- Superior surface finish
Swiss-Type Lathes
High-precision turning for small PEEK parts
- Diameter range: 0.5-32mm
- Length up to 300mm
- Live tooling capability
- Automated production
CMM Quality Control
CMM reports provided with every order
- 3D dimensional inspection
- Statistical process control
- Detailed measurement reports
- Traceability documentation
Equipment Specifications
| Equipment Type | Quantity | Tolerance | Max Size | Capability |
|---|---|---|---|---|
| 5-Axis CNC Centers | 8 Units | ±0.005mm | 800×600×500mm | Complex geometries |
| Swiss-Type Lathes | 12 Units | ±0.003mm | Ø32×300mm | High-precision turning |
| Wire EDM | 4 Units | ±0.002mm | 350×250×200mm | Fine feature cutting |
| CMM Systems | 3 Units | ±0.001mm | 1000×800×600mm | 3D inspection |

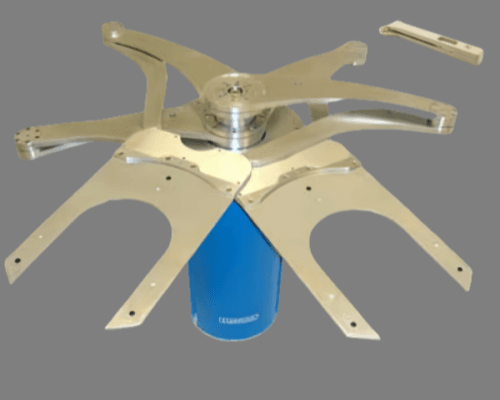

PEEK in Semiconductor Wafer Handling
Industry Challenge
Aluminum parts generate particles in cleanrooms, contaminating sensitive semiconductor wafers and reducing yield rates.
PEEK Solution
Our PEEK robot arms reduce contamination by 90% while maintaining precision positioning in cleanroom environments.
Cost-Saving Design Tips of Custom PEEK Parts
Optimized Gear Tooth Profile
Case study: Optimized PEEK gear tooth profile increases lifespan 3x compared to standard involute profile.
Surface Treatment Options
Specialized surface treatments reduce friction coefficient by 40% and extend bearing life in high-load applications.
Material Grade Selection
Choosing the right PEEK grade can reduce material costs by 30% while maintaining performance requirements.
PEEK vs Competitive Materials
Alternative to Vespel Parts
PEEK offers superior cost-effectiveness and availability compared to Vespel polyimide parts.
| Property | PEEK | Vespel SP-1 | Advantage |
|---|---|---|---|
| Continuous Use Temp. | 250°C | 260°C | Similar |
| Tensile Strength | 100 MPa | 69 MPa | PEEK +45% |
| Chemical Resistance | Excellent | Good | PEEK Better |
| Material Cost | $80/kg | $200/kg | PEEK -60% |
| Lead Time | 2-3 weeks | 8-12 weeks | PEEK Faster |
PEEK Machined Components vs PPS Machined Components
PEEK outperforms PPS in high-temperature and chemical resistance applications.
| Property | PEEK | PPS (40% GF) | Advantage |
|---|---|---|---|
| Max Operating Temp. | 250°C | 200°C | PEEK +50°C |
| Impact Strength | 7.5 kJ/m² | 4.0 kJ/m² | PEEK +88% |
| Hydrolysis Resistance | Excellent | Poor | PEEK Superior |
| Machining Quality | Excellent | Good | PEEK Better |
| FDA Compliance | Yes | Limited | PEEK Certified |
Low MOQ PEEK Parts China - Manufacturing Excellence
Low MOQ Production
PEEK CNC Machining Service Asia
