Semi-finished PTFE products Manufacturer
Semi-finished PTFE products are basic material used in corrosion protection.
Semi-finished PTFE Products
We are a leading manufacturer of high-quality semi-finished PTFE products, specializing in industrial-grade PTFE sheets, films, rods, and tubes. Our PTFE materials offer exceptional chemical resistance, temperature stability, and non-stick properties, making them ideal for various industrial applications including chemical processing, food manufacturing, pharmaceutical, and aerospace industries.
Chemical Resistance
Superior resistance to acids, bases, and solvents
Temperature Range
Operating temperature from -200°C to +260°C
Non-Stick Surface
Ultra-low friction coefficient and easy cleaning
FDA Approved
Food-grade materials meeting international standards

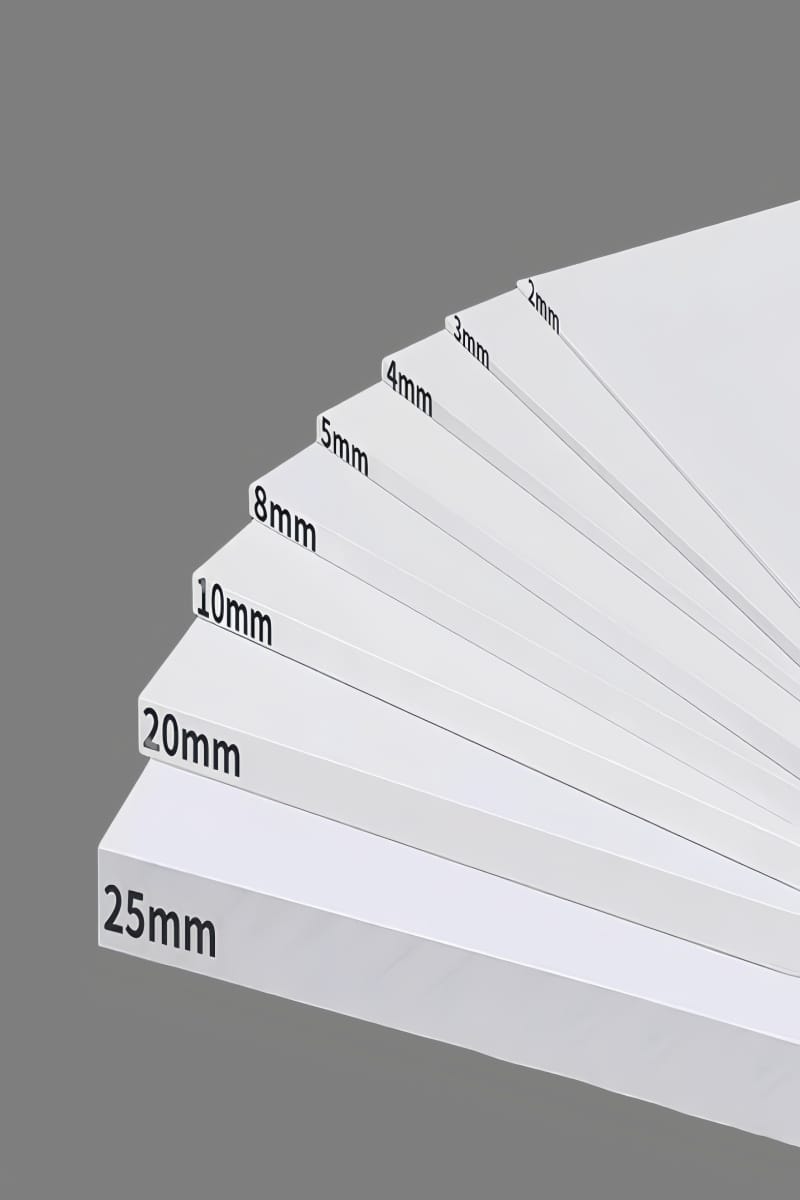

PTFE Sheet - Industrial Grade Polytetrafluoroethylene Sheets
Our PTFE sheets are manufactured using premium virgin PTFE resin, offering excellent chemical inertness and mechanical properties. Available in various thicknesses and sizes for custom fabrication and industrial applications.
Specifications
| Property | Value | Test Method |
|---|---|---|
| Thickness Range | 0.5mm - 50mm | Custom cutting available |
| Width | Up to 1500mm | Standard & Custom sizes |
| Density | 2.10-2.30 g/cm³ | ASTM D792 |
| Tensile Strength | ≥15 MPa | ASTM D638 |
| Operating Temperature | -200°C to +260°C | Continuous use |
| Dielectric Strength | ≥10 kV/mm | ASTM D149 |
Applications
- Chemical processing equipment gaskets and seals
- Food processing machinery non-stick surfaces
- Pharmaceutical equipment linings
- Electrical insulation components
- Laboratory equipment and chemical containers

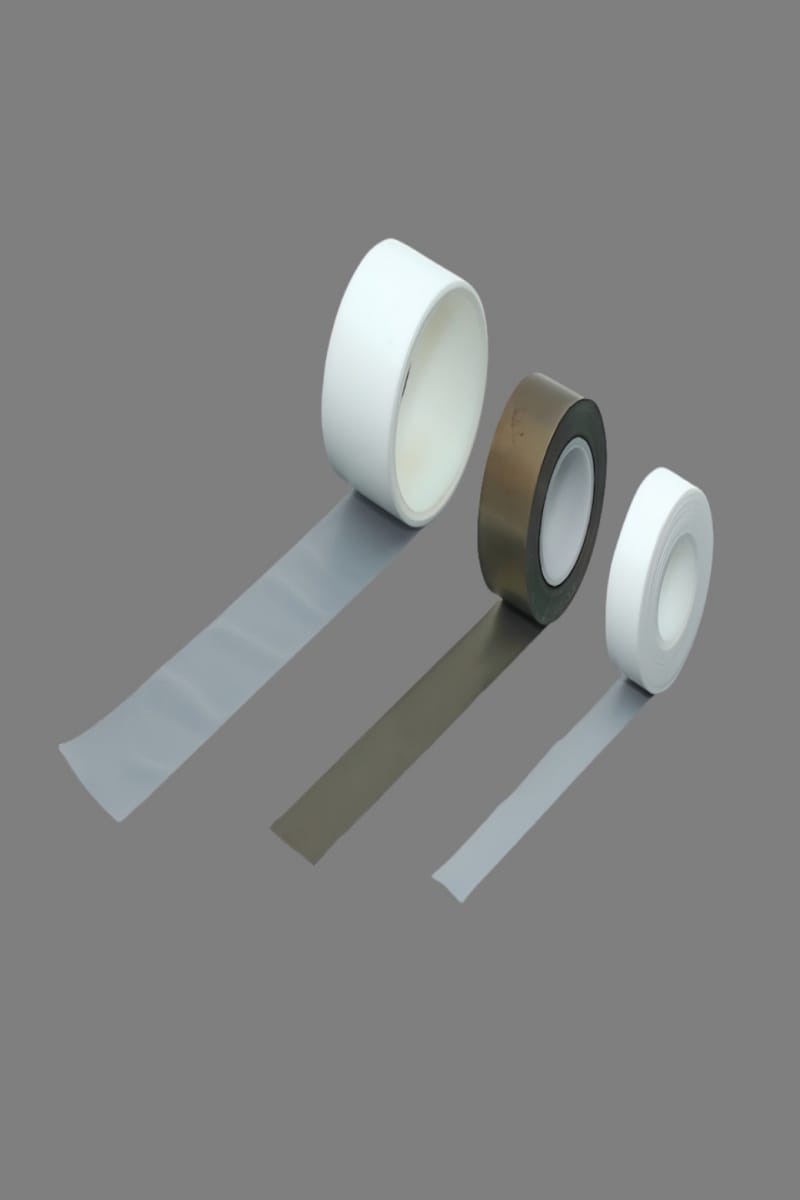

PTFE Film - Ultra-Thin Polytetrafluoroethylene Films
High-performance PTFE films manufactured through skiving and casting processes. Our thin films provide excellent barrier properties, chemical resistance, and flexibility for demanding applications.
Specifications
| Property | Value | Test Method |
|---|---|---|
| Thickness Range | 0.025mm - 0.5mm | Precision tolerance ±0.005mm |
| Width | Up to 1000mm | Roll format available |
| Tensile Strength (MD) | ≥100 N/cm | ASTM D882 |
| Elongation at Break | ≥200% | ASTM D882 |
| Water Vapor Transmission | ≤0.1 g/m²·24h | ASTM E96 |
| Surface Roughness | Ra ≤ 0.5 μm | Smooth finish |
Applications
- Release films for composite manufacturing
- Membrane switches and flexible circuits
- Chemical barrier films and protective coatings
- Medical device components and packaging
- Aerospace and automotive applications

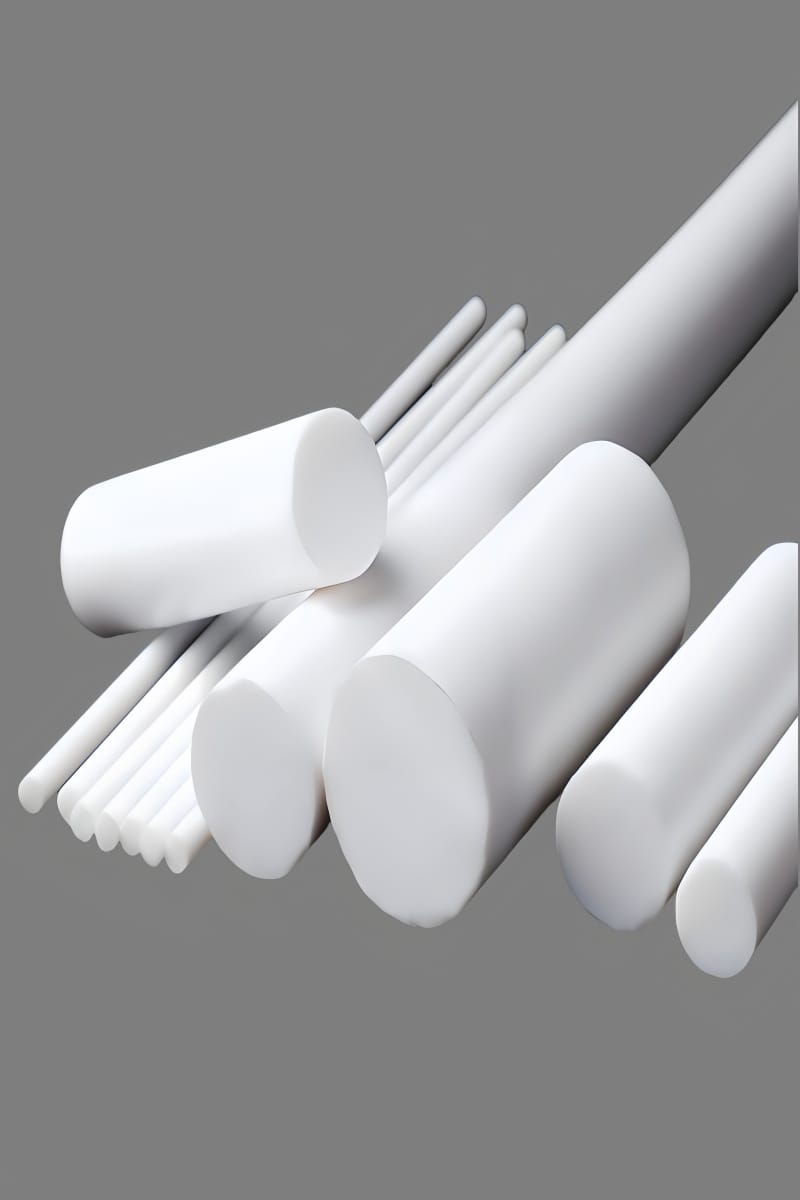

PTFE Rod - Precision Machined Polytetrafluoroethylene Rods
Extruded and molded PTFE rods manufactured to tight tolerances for precision machining applications. Our rods offer excellent dimensional stability and machinability for custom component fabrication.
Specifications
| Property | Value | Test Method |
|---|---|---|
| Diameter Range | 6mm - 300mm | Custom sizes available |
| Length | Up to 3000mm | Cut to length service |
| Diameter Tolerance | ±0.1mm to ±0.5mm | Depending on size |
| Compressive Strength | ≥10 MPa | ASTM D695 |
| Hardness | 50-65 Shore D | ASTM D2240 |
| Coefficient of Friction | 0.05-0.10 | Static/Dynamic |
Applications

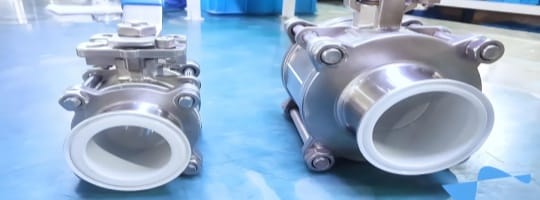

- Valve stems and pump components
- Bearing and bushing materials
- Electrical insulators and spacers
- Chemical processing equipment parts
- Custom machined components and prototypes

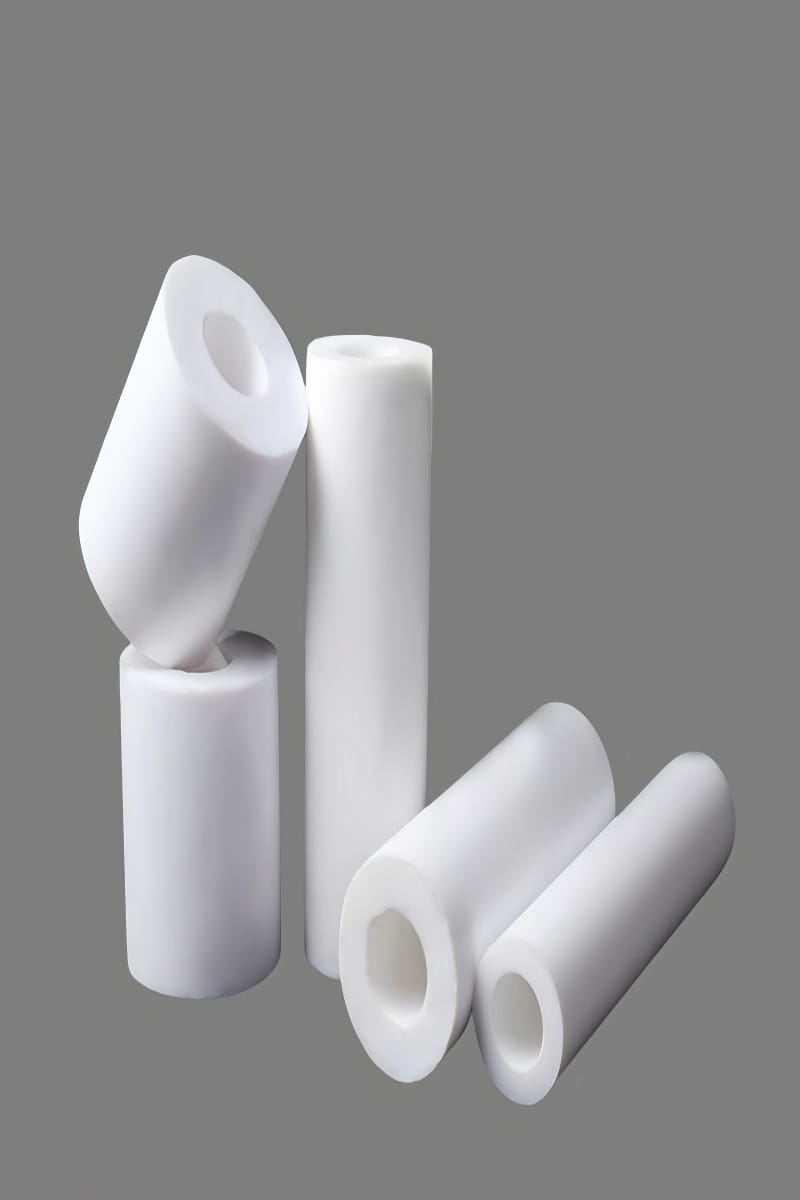

PTFE Tube - High-Performance Polytetrafluoroethylene Tubing
Extruded PTFE tubes with excellent chemical compatibility and temperature resistance. Our tubing solutions are ideal for fluid transfer applications in harsh chemical environments.
Specifications
| Property | Value | Test Method |
|---|---|---|
| Inner Diameter | 1mm - 100mm | Custom sizes available |
| Wall Thickness | 0.5mm - 10mm | Various wall thickness options |
| Length | Up to 100m continuous | Coil or straight lengths |
| Working Pressure | Up to 150 bar | At room temperature |
| Burst Pressure | 4:1 Safety factor | Hydrostatic test |
| Permeability | Ultra-low gas permeation | Excellent barrier properties |
Applications
- Chemical transfer lines and hoses
- Laboratory and analytical equipment
- Food and beverage processing systems
- Pharmaceutical and biotech applications
- High-purity gas and liquid handling
Advanced Manufacturing Equipment
Our state-of-the-art manufacturing facility is equipped with advanced PTFE processing equipment to ensure consistent quality and precision in all our semi-finished PTFE products.

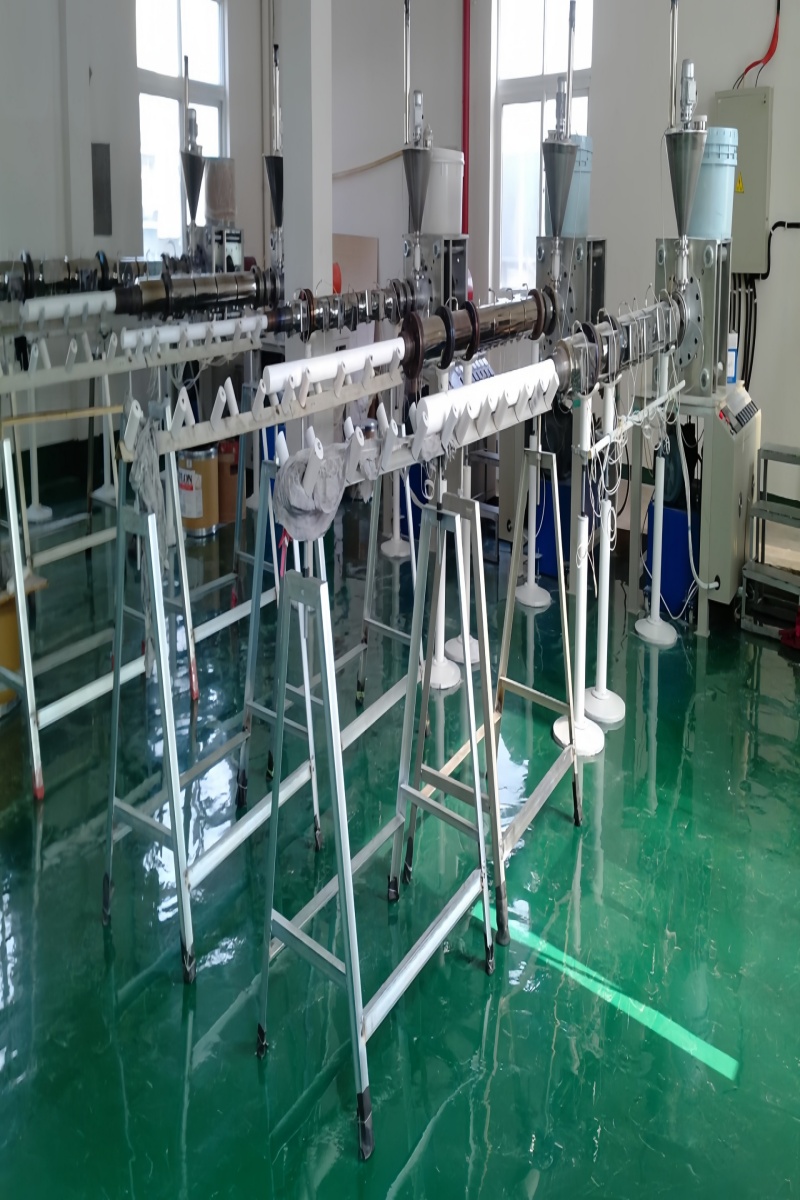

PTFE Extrusion Lines
High-precision extrusion equipment for rods and tubes

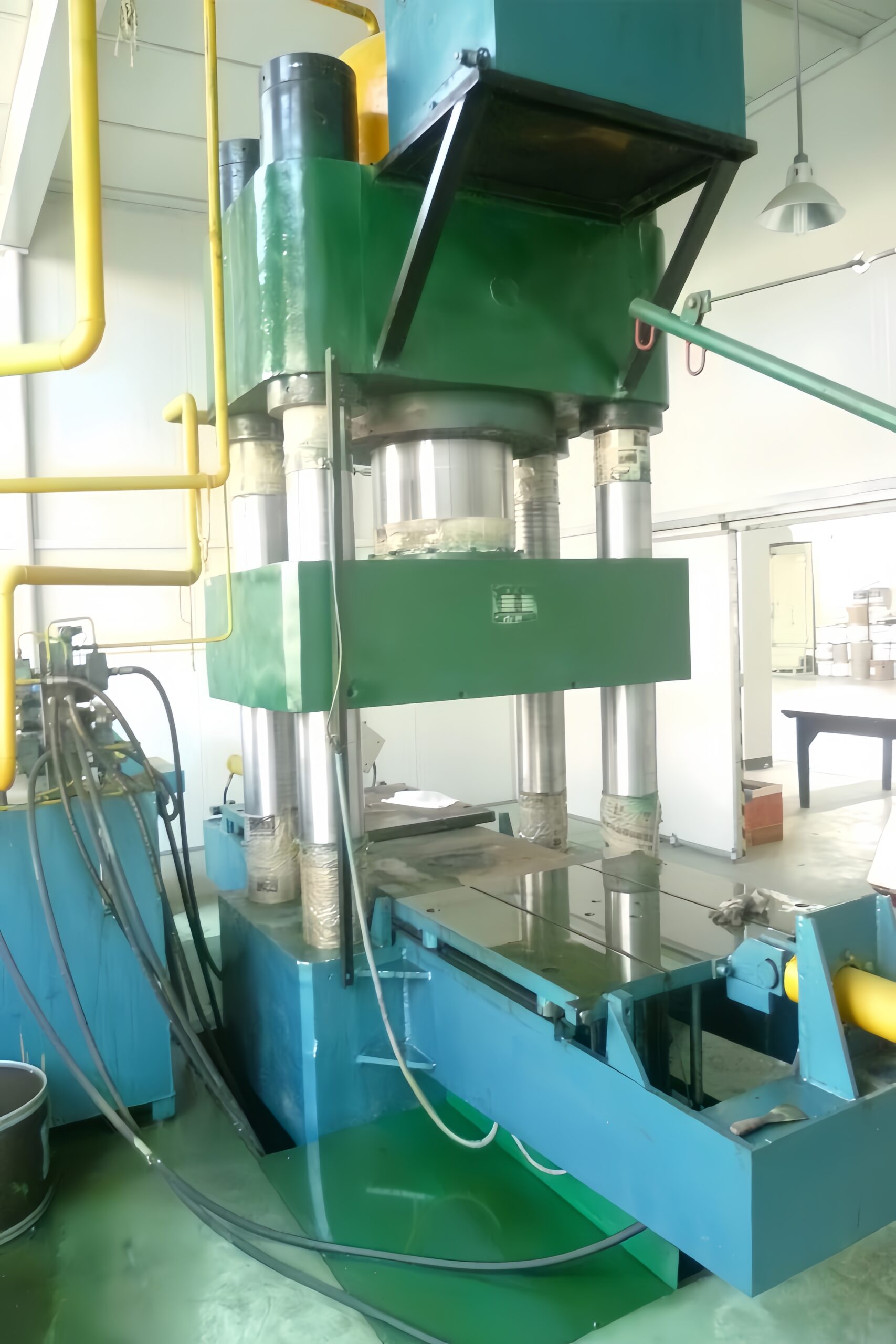

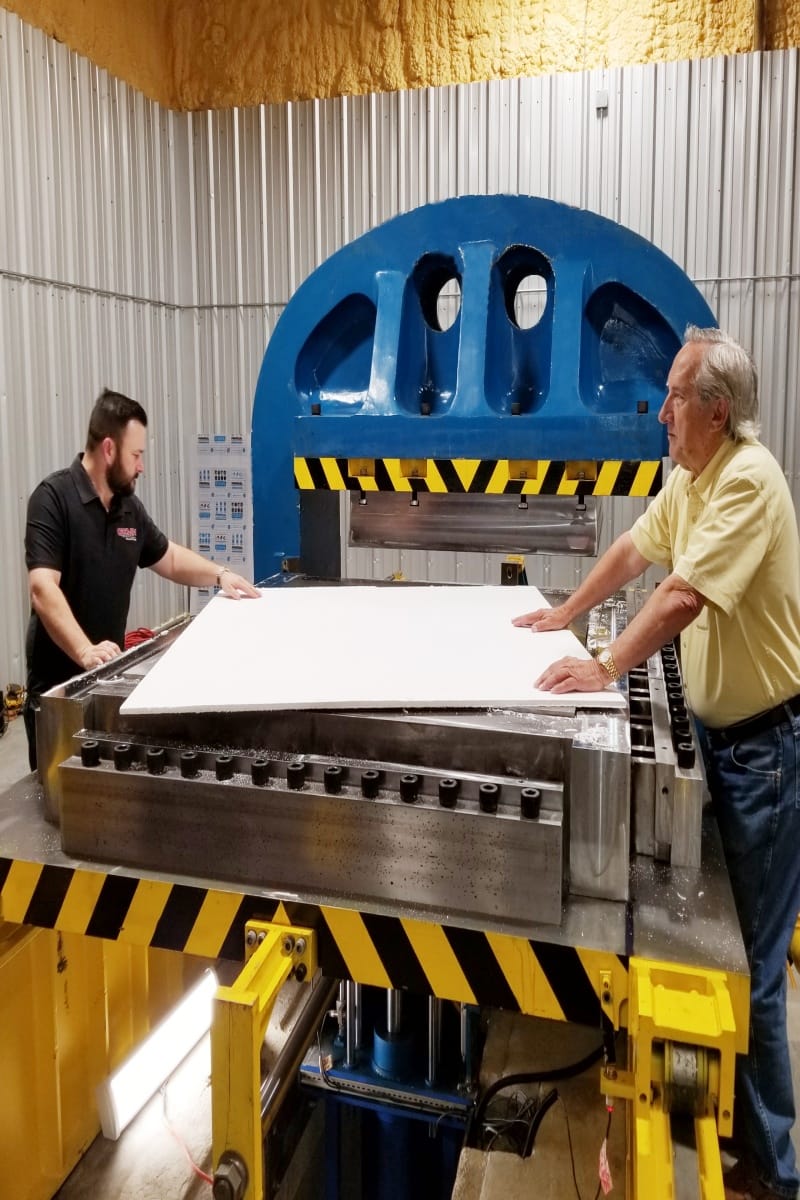

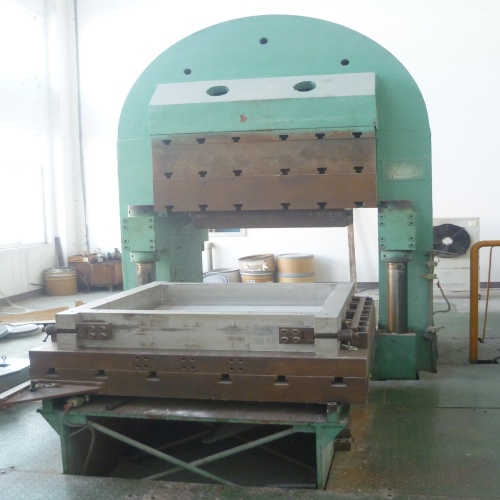

Compression Molding Presses
Large-capacity presses for sheet manufacturing

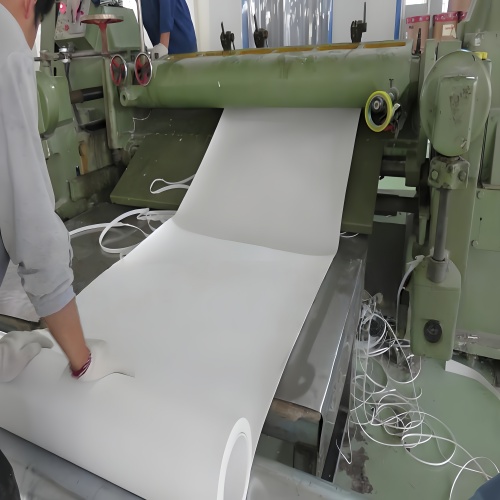

Skiving Equipment
Precision skiving machines for thin film production

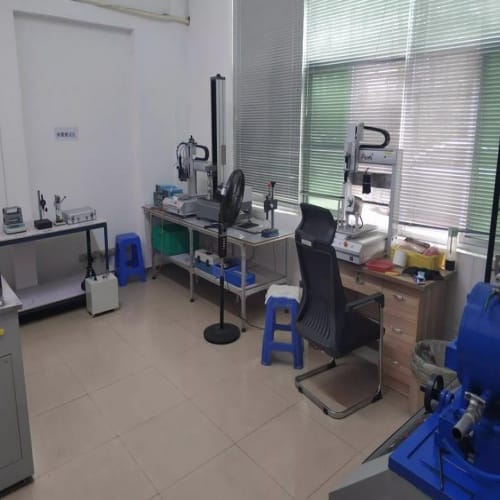

Quality Control Laboratory
Advanced testing equipment for quality assurance
Success Cases & Industry Applications
Our PTFE semi-finished products have been successfully implemented across various industries worldwide. Here are some notable applications and customer success stories.
Large-Scale Chemical Plant Upgrade
Supplied 500+ PTFE sheets and custom-fabricated components for a major petrochemical facility. Our materials withstood aggressive chemical environments for over 5 years without replacement.
FDA-Compliant Food Processing Line
Provided custom PTFE films and tubes for a leading food manufacturer's new production line. All materials met strict FDA requirements for direct food contact applications.
Aerospace Component Manufacturing
Delivered precision PTFE rods and custom-machined parts for aircraft engine components. Materials passed rigorous aerospace qualification testing and certification.
Pharmaceutical Manufacturing Equipment
Supplied high-purity PTFE sheets and tubes for pharmaceutical equipment manufacturing. Materials met USP Class VI requirements for biocompatibility.
