PCTFE Film for Pharmaceutical Blister Packaging & High Barrier Applications
Chinese Manufacturer of Crystal Clear PCTFE Film for Drug Packaging, Electronic Moisture Barrier, and Laminates.
PCTFE film - The Ultimate Barrier Against Moisture and Oxygen
PCTFE (Polychlorotrifluoroethylene) film represents the gold standard in high barrier film technology. With the lowest water vapor transmission rate (WVTR) and oxygen transmission rate (OTR) among all transparent plastics, PCTFE film is the preferred choice for protecting moisture-sensitive pharmaceuticals, hygroscopic chemicals, and sensitive electronic components.
As a leading PCTFE film manufacturer in China, we manufacture crystal-clear PCTFE films that match or exceed the performance of Aclar® at a more competitive price point. Our pharmaceutical blister film solutions help extend drug shelf life and maintain product integrity throughout the supply chain.
Superior Barrier Performance: PCTFE Films vs. Conventional Films
See how PCTFE film outperforms other packaging materials in critical barrier properties:
Water Vapor & Oxygen Transmission Rates Comparison
Lower values indicate better barrier performance
| Material | WVTR (g/m²/day) 38°C, 90% RH |
OTR (cc/m²/day) 23°C, 0% RH |
Clarity | Chemical Resistance |
|---|---|---|---|---|
| PCTFE Film | 0.05 - 0.15 | 0.5 - 2.0 | Excellent | Excellent |
| Aclar® (PCTFE) | 0.10 - 0.20 | 1.0 - 3.0 | Excellent | Excellent |
| PVC Film | 15 - 40 | 150 - 500 | Good | Fair |
| PVDC Coated Film | 2 - 8 | 5 - 15 | Good | Good |
| PET Film | 15 - 25 | 50 - 150 | Excellent | Good |
| Aluminum Foil | < 0.01 | < 0.01 | Opaque | Excellent |
Key Advantage
PCTFE film provides 100-300x better moisture barrier than PVC while maintaining crystal clarity - perfect for water vapor barrier film applications where product visibility is essential.
Solve Critical Packaging Challenges with PCTFE Film
Address your most demanding barrier packaging requirements with proven PCTFE film solutions:

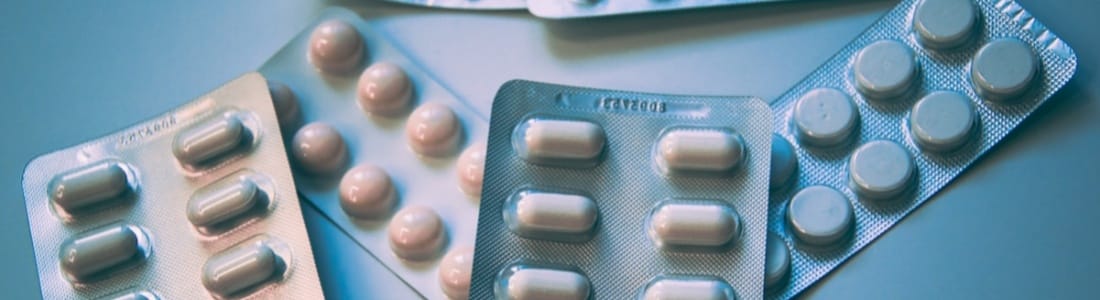

Challenge: Extending Shelf-Life of Moisture-Sensitive Pharmaceuticals
The Problem:
Hygroscopic drugs and moisture-sensitive APIs degrade rapidly when exposed to humidity, leading to reduced efficacy, shortened shelf life, and costly product recalls. Traditional PVC blister packaging offers insufficient protection for critical medications.
Our Solution:
Our PCTFE film for moisture sensitive drugs provides unmatched protection with WVTR as low as 0.05 g/m²/day - up to 300x better than standard PVC. This enables drug shelf life extension of 2-5 years even in tropical climates, ensuring product stability and patient safety.
- Protects hygroscopic APIs and biologics
- Extends shelf life in high-humidity environments
- Reduces need for desiccants and secondary packaging
- Maintains drug potency throughout distribution

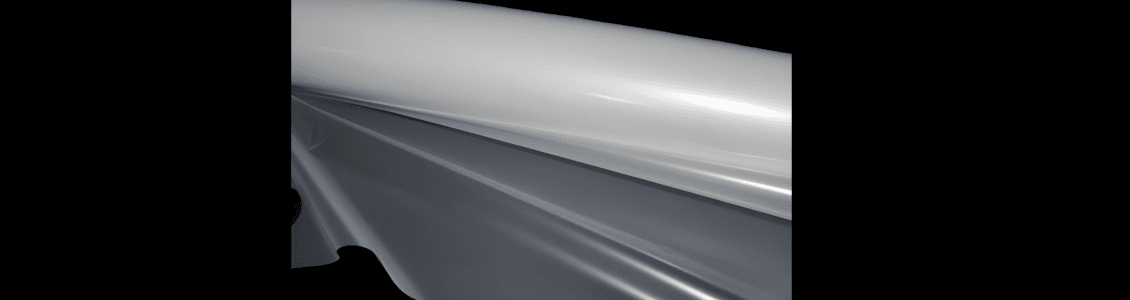

Challenge: Finding a Cost-Effective Alternative to Aclar®
The Problem:
Aclar® PCTFE film from Honeywell offers excellent barrier properties but comes with premium pricing and potential supply chain constraints. Many pharmaceutical and electronics manufacturers seek equivalent performance at better value.
Our Solution:
As a direct manufacturer, we offer high-quality Aclar alternative PCTFE film with comparable or superior barrier performance at 20-40% cost savings. Our clear high barrier packaging meets the same stringent quality standards while providing better supply flexibility and technical support.
- Equivalent barrier performance to Aclar®
- 20-40% cost reduction for high-volume orders
- Reliable supply chain with shorter lead times
- Custom thickness and width options available
- Technical support for packaging optimization
Challenge: Protecting Hygroscopic Products in Electronics & Diagnostics
The Problem:
Sensitive electronic components, diagnostic reagents, and specialty chemicals require extreme moisture protection during storage and shipping. Conventional barrier films often fail in demanding applications, leading to product failure and warranty claims.
Our Solution:
Our PCTFE film provides the ultimate barrier to protect hygroscopic products in electronics, diagnostics, and specialty chemical packaging. With near-zero moisture transmission and excellent chemical resistance, our film ensures product integrity even in the harshest conditions.
- Protects moisture-sensitive IC chips and components
- Maintains diagnostic reagent stability
- Prevents oxidation and contamination
- Transparent for easy product inspection
- Compatible with heat sealing and lamination
Our PCTFE Film Specifications
Comprehensive range of PCTFE packaging film products to meet diverse application requirements:
Standard Specifications
| Thickness Range: | 12.5 μm - 500 μm (0.5 mil - 20 mil) |
| Standard Widths: | 300mm, 500mm, 600mm, 1000mm |
| Maximum Width: | Up to 1500mm (custom order) |
| Roll Length: | 100m - 500m (varies by thickness) |
| Transparency: | Crystal clear (>90% light transmission) |
| Color Options: | Natural (clear), custom colors available |
Physical & Barrier Properties
| WVTR (38°C, 90% RH): | 0.05 - 0.15 g/m²/day |
| OTR (23°C, 0% RH): | 0.5 - 2.0 cc/m²/day |
| Tensile Strength: | 35 - 45 MPa |
| Elongation at Break: | 100 - 200% |
| Service Temperature: | -240°C to +200°C |
| Dielectric Strength: | 60 - 80 kV/mm |
Surface Treatment Options
| Standard: | Untreated (both sides) |
| Corona Treated: | One or both sides (for printing/lamination) |
| Plasma Treated: | Enhanced adhesion for coatings |
| Embossed: | Custom patterns for blister forming |
| Metallized: | Aluminum coating for enhanced barrier |
| Laminate Ready: | Compatible with PVC, PET, aluminum foil |
Quality & Compliance
| Purity: | Virgin PCTFE resin only |
| USP Class VI: | Compliant (pharmaceutical grade) |
| FDA Status: | 21 CFR 177.1380 compliant |
| EU Compliance: | EU 10/2011 food contact approved |
| RoHS/REACH: | Fully compliant |
| Quality System: | ISO 9001:2015 certified |
Custom Specifications Available: We can manufacture PCTFE film to your exact requirements including custom thickness, width, surface treatment, and packaging. Contact us with your specifications for a detailed quote.
PCTFE Film Application-Specific Solutions
Our PCTFE laminate and film products serve critical applications across multiple industries:

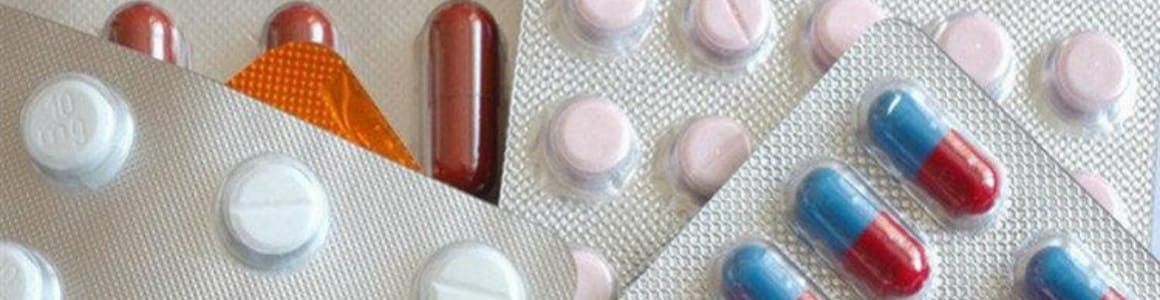

Pharmaceutical Blister Packaging
The premier choice for pharmaceutical blister film applications requiring maximum moisture and oxygen protection:
- Moisture-Sensitive Drugs: Hygroscopic APIs, effervescent tablets, lyophilized products
- Biologics & Vaccines: Protein-based drugs requiring ultra-low moisture exposure
- Oncology Medications: High-value drugs needing extended shelf life
- Tropical Climate Packaging: Products distributed in high-humidity regions
- Unit Dose Packaging: Individual dose protection for hospitals and clinics

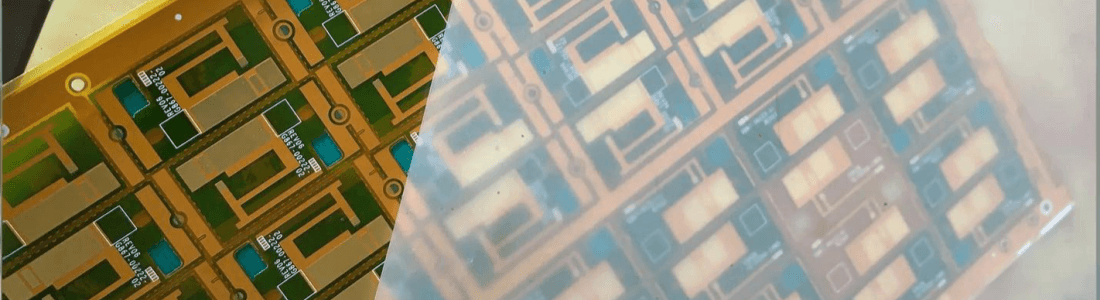

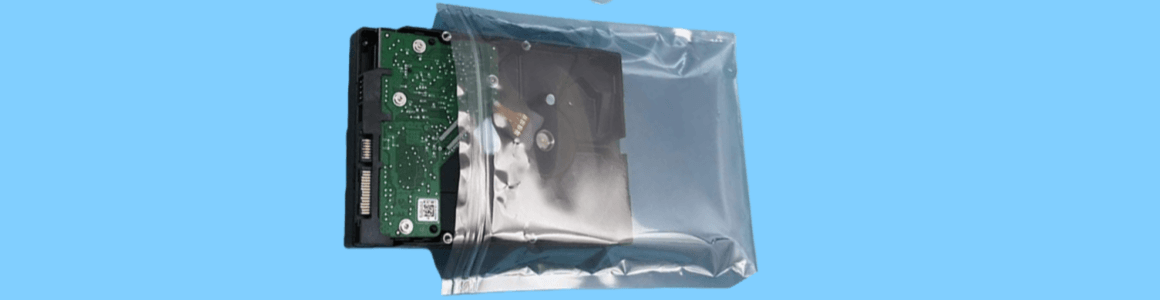

Electronics & IC Chip Barrier Pouches
Protect sensitive electronic components from moisture damage during storage and shipping:
- IC Chip Packaging: Moisture-sensitive semiconductor devices (MSL 1-6)
- PCB Protection: Printed circuit boards during manufacturing and storage
- LED Components: Moisture-sensitive LED chips and modules
- Sensor Packaging: MEMS sensors and optical components
- Battery Pouches: Lithium battery cell protection

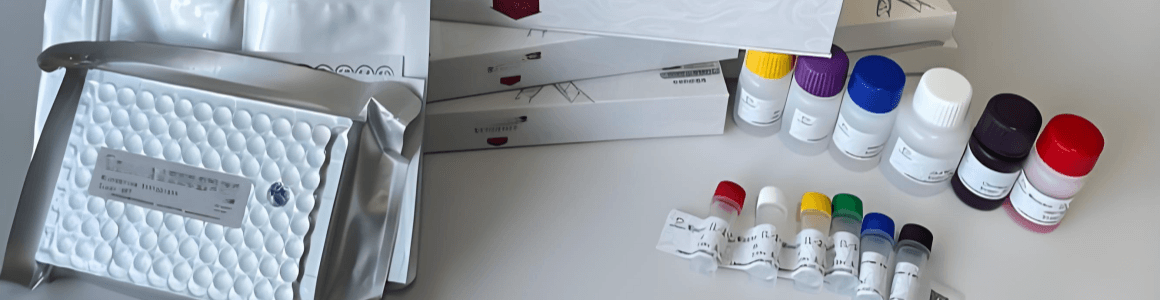

Specialty Food & Diagnostic Kit Packaging
Advanced barrier solutions for specialty products requiring extended shelf life:
- Diagnostic Test Kits: Reagent strips, lateral flow tests, blood glucose strips
- Nutraceuticals: Probiotics, enzymes, and moisture-sensitive supplements
- Specialty Foods: Freeze-dried products, instant beverages, flavor compounds
- Chemical Reagents: Laboratory chemicals and analytical standards
- Desiccant Packaging: Silica gel and molecular sieve pouches
Regulatory Compliance & Quality Assurance of PCTFE film/Kel-F film
Our PCTFE film meets the most stringent international standards for pharmaceutical and food contact applications:
USP Class VI
Meets United States Pharmacopeia Class VI requirements for biological reactivity tests, suitable for pharmaceutical packaging and medical device applications.
FDA 21 CFR 177.1380
Compliant with FDA regulations for fluorocarbon resins in food contact applications, approved for direct food contact packaging.
EU 10/2011
Meets European Union regulations on plastic materials and articles intended to come into contact with food.
RoHS & REACH
Fully compliant with EU RoHS directive and REACH regulations, free from restricted substances and heavy metals.
ISO 9001:2015
Manufacturing facility certified to ISO 9001:2015 quality management system standards with full traceability and documentation.
DMF Available
Drug Master File (DMF) documentation available for pharmaceutical customers requiring regulatory submission support.
Quality Documentation: We provide comprehensive Certificates of Analysis (CoA), Material Safety Data Sheets (MSDS), and regulatory compliance documentation with every shipment. Custom testing and validation support available upon request.
Why Source PCTFE Film/PCTFE Membrane from Us?
Partner with a trusted Chinese manufacturer for reliable supply, competitive pricing, and technical excellence:
Direct Factory Supply
As a vertically integrated manufacturer, we control the entire production process from raw material to finished film. This ensures consistent quality, competitive pricing, and reliable supply without middleman markups.
Pharmaceutical-Grade Quality
Our PCTFE film is manufactured from virgin resin in ISO-certified cleanroom facilities. Every batch undergoes rigorous testing for barrier properties, purity, and compliance with USP Class VI and FDA standards.
Fast Lead Times
Standard specifications ship within 2-3 weeks. We maintain inventory of popular thicknesses and widths for quick turnaround. Custom orders typically delivered in 4-6 weeks with expedited options available.
Technical Support
Our applications engineers provide expert guidance on film selection, lamination processes, blister forming parameters, and packaging optimization. We support your product development from concept to production.
Custom Solutions
We offer custom thickness, width, surface treatment, and laminate structures tailored to your specific application. Our R&D team can develop specialized formulations for unique requirements.
Global Export Experience
We export to over 30 countries with extensive experience in international logistics, customs documentation, and regulatory compliance. Our team ensures smooth delivery to your facility worldwide.
