PTFE Coated Fiberglass Fabric & Tape Manufacturer | PTFE Industrial Solutions
Heat Resistant PTFE Glass Cloth (500°F) & Adhesive Tapes for Packaging, Sealing & Release Applications
Premium PTFE Coated Fiberglass Fabric & High-Temp Adhesive Tapes – Direct Factory Supply
As a top ISO 9001 certified manufacturer of PTFE coated fiberglass fabrics, Teflon®-coated fabrics (up to260°C/500°F) andFDA-compliant PTFE tapes for industrial sealing, release liners, and packaging from China, most of our PTFE coated fiberglass fabrics(PTFE coated glass cloth) are exported to Europe, North America, Asian countries with high quality and competitive price.
Premium PTFE Coated Fabric & High Temperature PTFE Adhesive Tape Solutions
Our PTFE coated fiberglass fabric and Teflon tape deliver exceptional performance in demanding industrial applications as PTFE release fabric, Non-stick PTFE fabric, high temperature PTFE cloth. From PTFE release fabric for composite molding to 3mm thick Teflon coated fiberglass for heavy-duty conveyor systems, we provide FDA compliant PTFE tape and UL 94 V-0 fireproof fabric solutions.
PTFE Coated Fiberglass Fabric
PTFE heat resistant fabric with non-stick coating for conveyor belts, gaskets, and release applications.
- Thickness: 0.13-3mm available
- Temperature: -70°C to +260°C
- FDA compliant grades
- PTFE membrane reinforcement
High Temperature Adhesive Tape
PTFE/Teflon tape for plasma etching machine seals, packaging, and high-temp applications.
- Continuous use: 260°C (500°F)
- Silicone adhesive backing
- UL 94 V-0 flame retardant
- PTFE thread seal tape option
PTFE Coated Fabric & High Temperature PTFE Tape Specifications
| Product Type | Specifications | Key Applications | Temperature Range | Certifications |
|---|---|---|---|---|
|
PTFE Glass Fabric Non-stick coating fabric |
• Thickness: 0.13-3mm • Width: up to 3000mm • Weight: 200-1000 g/m² • PTFE membrane reinforced |
• Conveyor belts • PTFE gasket material • Release liner applications • Heat resistant fabric uses |
-70°C to +260°C (500°F continuous) |
FDA, RoHS, REACH |
|
High Temp Tape PTFE adhesive tape |
• Thickness: 0.08-0.25mm • Width: 6-1000mm • Adhesion: 8-15 N/25mm • Silicone coated backing |
• Plasma etching seals • Packaging machinery • PTFE thread seal tape • Heat sealing applications |
-60°C to +260°C (500°F peak) |
UL 94 V-0, FDA |
|
PTFE Release Fabric Composite molding grade |
• Thickness: 0.13-1mm • Surface: Ultra-smooth • Release force: <2 N/cm • PTFE laminated fabric |
• Composite molding • Vacuum bagging • Press molding release • Teflon FEP film alternative |
-200°C to +260°C (Autoclave safe) |
Aerospace AS9100 |
|
Silicone Coated Fiberglass Hybrid solution |
• Thickness: 0.2-2mm • Coating: Both sides • Flexibility: Enhanced • Color: Brown/Gray |
• Flexible ducting • Expansion joints • Welding blankets • Insulation covers |
-70°C to +200°C (390°F continuous) |
UL, CSA approved |

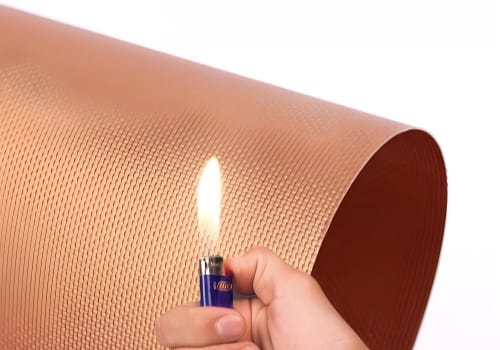

Stop Seal Leakage in High-Temp Pumps - PTFE Coated Fiberglass Fabric
Traditional gasket materials fail under extreme temperature and chemical exposure, causing costly downtime and safety hazards in industrial pump systems.
Our Solution: 1mm thick PTFE coated fiberglass fabric withstands 100+ steam sterilization cycles while maintaining seal integrity. FDA compliant PTFE tape ensures food-grade safety standards.
PTFE Coated Fabric Applications Across Industries

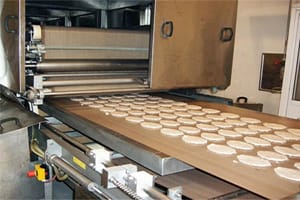

Food Processing
FDA compliant PTFE conveyor belts for baking, freezing, and packaging applications. Non-stick surface prevents product adhesion.
- PTFE conveyor belt systems
- Heat resistant fabric linings
- FDA compliant materials

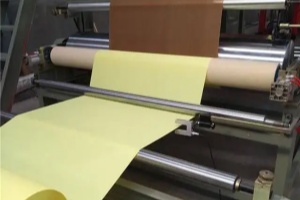

Aerospace Composites
PTFE release fabric for composite molding ensures clean part separation and surface finish in aerospace manufacturing.
- Vacuum bagging release
- Autoclave compatible
- AS9100 certified
Semiconductor
High temperature PTFE tape for plasma etching machine seals and chemical-resistant gasket applications.
- Plasma etching seals
- Chemical resistance
- Ultra-clean processing

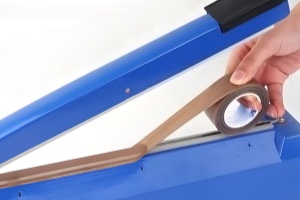

Packaging Machinery
Teflon tape for heat sealing bars, release surfaces, and high-temperature packaging equipment components.
- Heat sealing applications
- Non-stick release surfaces
- Continuous operation
Why Choose Our PTFE Coated Glass Cloth Solutions?
Superior Temperature Resistance
Our PTFE coated fiberglass fabric maintains performance from -70°C to +260°C, outperforming standard heat resistant fabric solutions by 40%.
Chemical Inertness
PTFE membrane coating provides exceptional chemical resistance, making our fabric ideal for aggressive chemical environments.
Multiple Certifications
FDA compliant PTFE tape, UL 94 V-0 fireproof fabric, and AS9100 aerospace certifications ensure quality and safety compliance.
Custom Manufacturing
From 3mm thick Teflon coated fiberglass to ultra-thin PTFE thread seal tape, we customize solutions for your specific application needs.
PTFE vs Alternative Materials Performance
| Property | PTFE Coated Fabric | Silicone Coated Fiberglass | Standard Fabric | Teflon FEP Film |
|---|---|---|---|---|
| Max Temperature | 260°C (500°F) | 200°C (390°F) | 150°C (300°F) | 200°C (390°F) |
| Chemical Resistance | Excellent | Good | Poor | Excellent |
| Non-stick Properties | Superior | Good | None | Superior |
| Mechanical Strength | High | Medium | High | Low |
| FDA Compliance | Yes | Limited | No | Yes |
Quality Assurance & Manufacturing Excellence of Teflon Coated Fiberglass

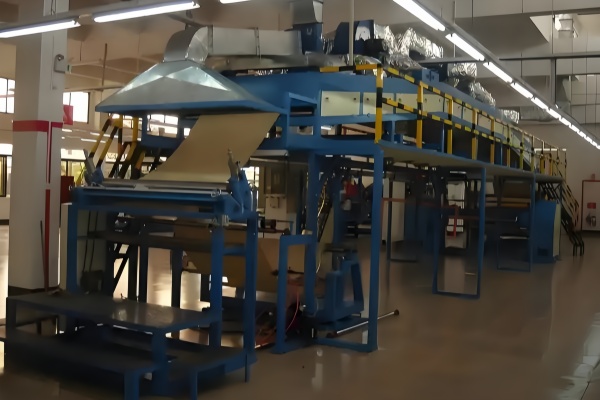

Manufacturing Capabilities
- Monthly capacity: 50,000m² PTFE coated fabric
- Width range: 6mm to 3000mm
- Thickness precision: ±0.02mm
- Custom PTFE laminated fabric solutions
Testing Standards
- ASTM D1000 - Pressure-sensitive tape testing
- ASTM D3330 - Peel adhesion testing
- UL 94 - Flammability testing
- FDA 21 CFR 177.1550 - Food contact compliance
Certifications
- ISO 9001:2015 Quality Management
- FDA compliant PTFE tape certification
- UL 94 V-0 fireproof fabric rating
- AS9100 Aerospace quality standard
