20,000+ Molded FEP Parts Shipped Monthly to OEMs
Precision FEP Molded Parts – Chemical & Electrical Applications
Our precision FEP molded parts combine exceptional chemical resistance with outstanding electrical insulation properties. From FEP ball valve seat applications to custom FEP components for analytical instruments, we deliver high-quality FEP sensor housing for pH meters and specialized FEP valve seat for sulfuric acid pumps with industry-leading dimensional accuracy.
FEP Molded Parts Overview
| Component Type | Size Range | Tolerance | Applications |
|---|---|---|---|
| Ball Valve Seats | 1/4" to 2" valves | ±0.01mm | Chemical pumps, process valves |
| Sensor Housings | 10mm to 100mm | ±0.02mm | pH meters, analytical instruments |
| Sealing Gaskets | 5mm to 300mm | ±0.05mm | Food processing, pharmaceuticals |
| Flow Cells | Custom designs | ±0.01mm | Blood analyzers, spectroscopy |
| Electrical Insulators | 2mm to 50mm | ±0.02mm | High-voltage applications |
| Pump Diaphragms | 20mm to 200mm | ±0.03mm | Chemical dosing pumps |
| Optical Windows | 10mm to 100mm | ±0.01mm | UV spectroscopy, lasers |
| Custom Fittings | Application specific | ±0.01mm | Semiconductor, medical devices |
FEP Molded Parts Applications
- Chemical processing valve components
- Medical device sensor housings
- Semiconductor manufacturing equipment
- Analytical instrument flow cells
- High-voltage electrical insulators
- Food processing sealing components
Advanced FEP Molding Capabilities
Precision Injection Molding
±0.01mm tolerance with automated quality control
Insert Molding
Metal inserts for threaded connections
Multi-Cavity Production
High-volume efficiency with consistent quality
Rapid Prototyping
15-day lead time for custom designs
Standard FEP Parts
Our comprehensive catalog of standard FEP molded parts includes precision-engineered FEP ball valve seat components and FDA-compliant sealing gaskets. These ready-to-ship components offer immediate availability with consistent quality for common industrial applications.
Standard FEP Parts Dimension
| Part Type | Specifications | Operating Conditions | Certifications |
|---|---|---|---|

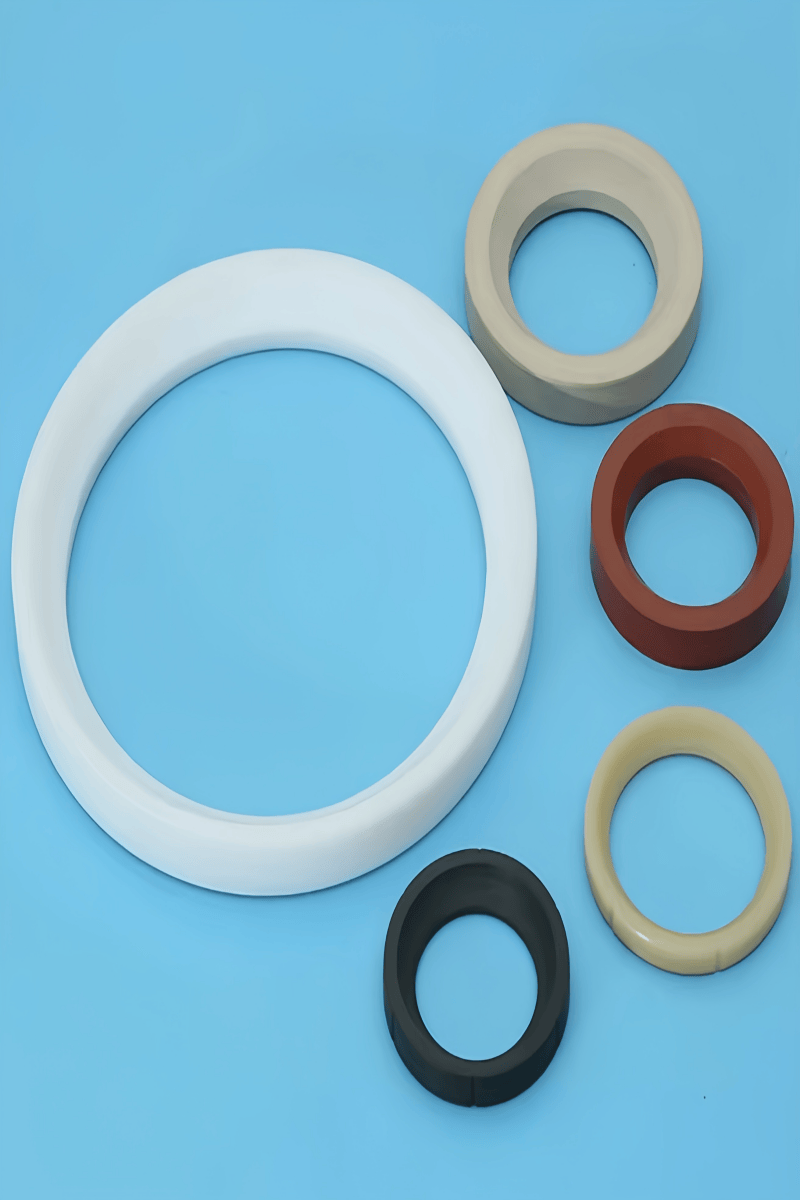

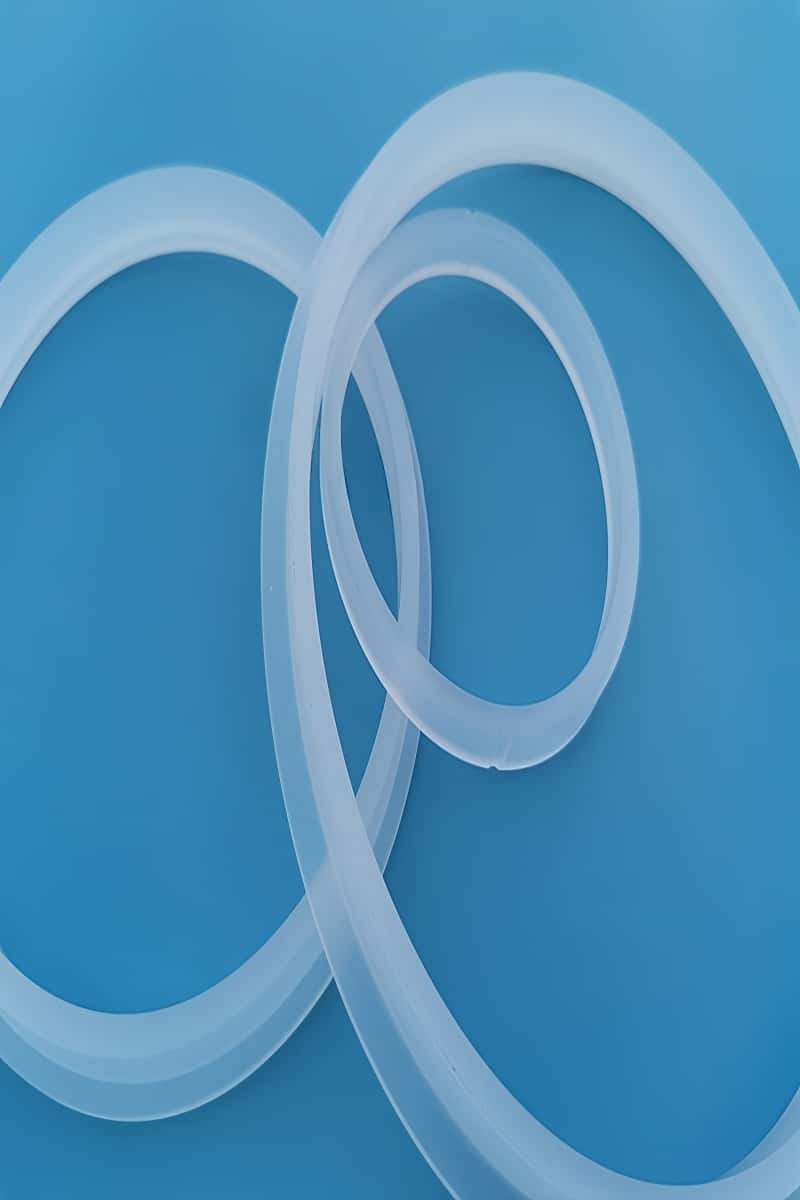

| Ball Valve Seats - 1/4" | OD: 12mm, ID: 6.35mm, H: 4mm | 150psi @ 200°C | ISO 2768-mK |
| Ball Valve Seats - 1/2" | OD: 20mm, ID: 12.7mm, H: 6mm | 150psi @ 200°C | ISO 2768-mK |
| Ball Valve Seats - 3/4" | OD: 25mm, ID: 19.05mm, H: 8mm | 150psi @ 200°C | ISO 2768-mK |
| Ball Valve Seats - 1" | OD: 32mm, ID: 25.4mm, H: 10mm | 150psi @ 200°C | ISO 2768-mK |
| Ball Valve Seats - 2" | OD: 60mm, ID: 50.8mm, H: 15mm | 150psi @ 200°C | ISO 2768-mK |

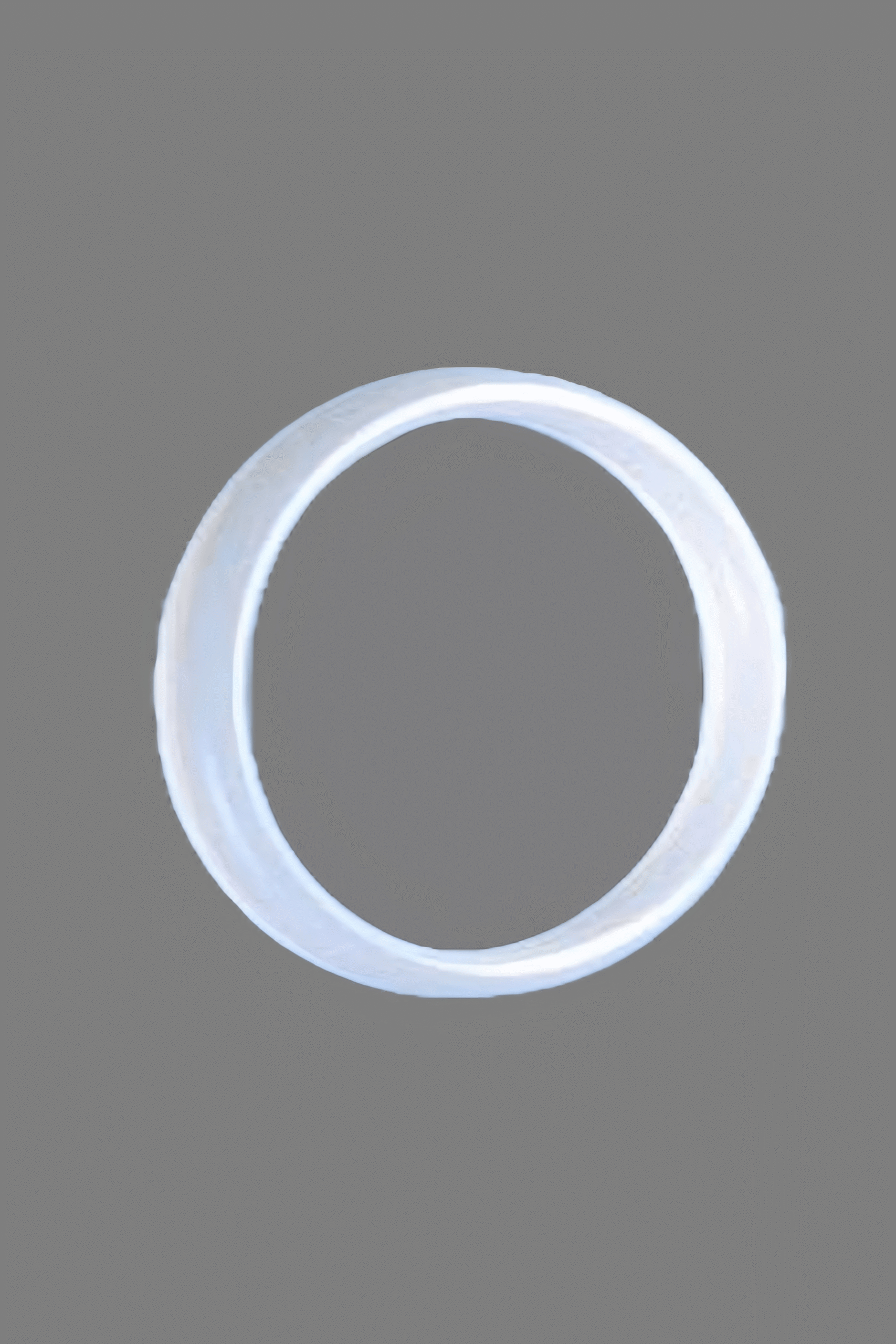

| Sealing Gaskets - Round | Various sizes: 10-300mm OD | 200psi @ 180°C | FDA 21 CFR 177.1550 |
| Sealing Gaskets - Custom | Square, rectangular, complex shapes | 200psi @ 180°C | FDA 21 CFR 177.1550 |
| O-Rings | AS568 standard sizes | 150psi @ 200°C | USP Class VI |
Standard FEP Parts Applications
- Chemical processing ball valves and control valves
- Food processing equipment sealing systems
- Pharmaceutical manufacturing equipment
- Laboratory analytical instrument connections
- Semiconductor wet bench valve assemblies
- High-purity water treatment systems
Standard FEP Parts Features
Immediate Availability
Stock inventory for 1-3 day shipping
Consistent Quality
100% dimensional inspection
Competitive Pricing
Volume discounts available
Technical Support
Application engineering assistance
Custom FEP Molding

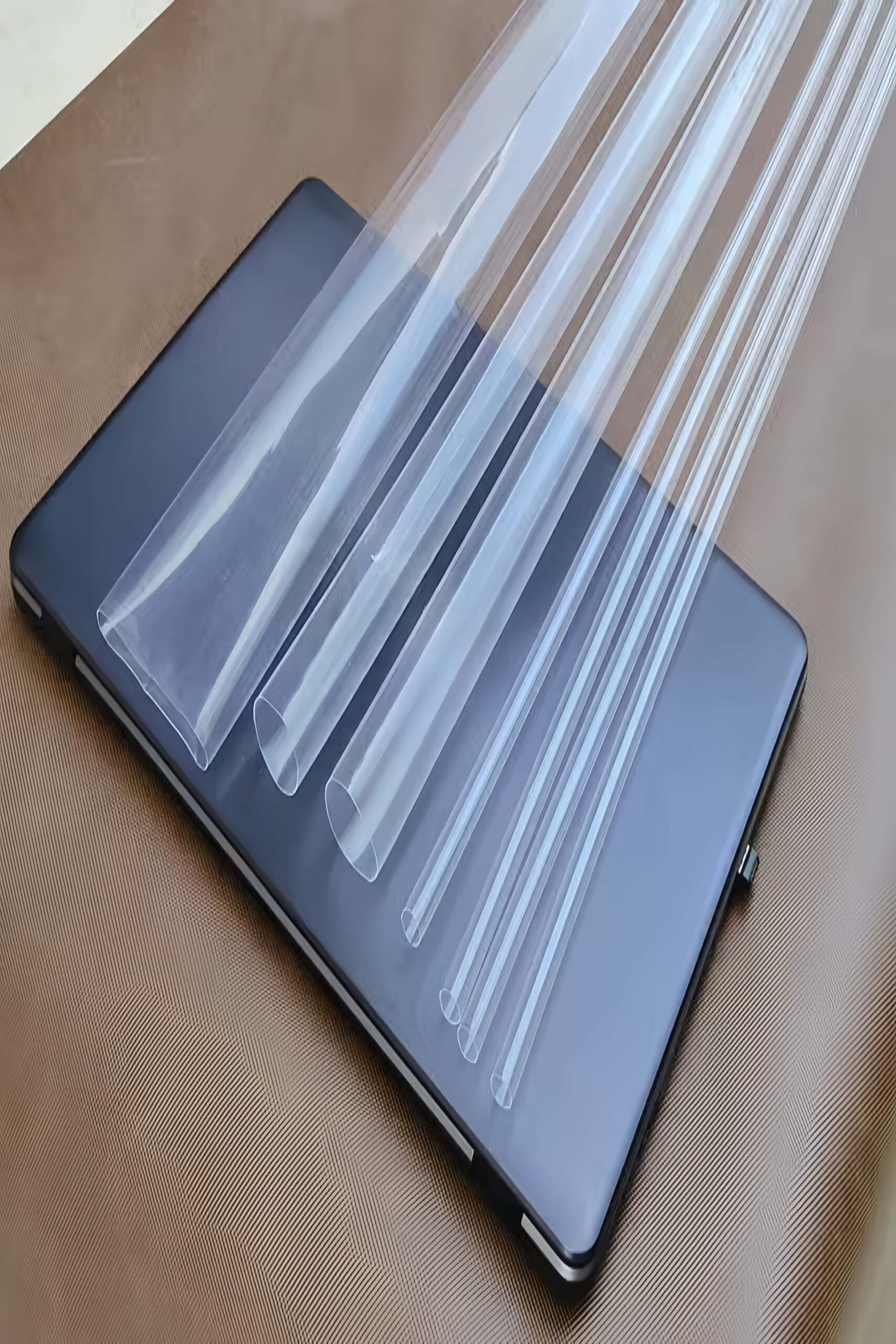

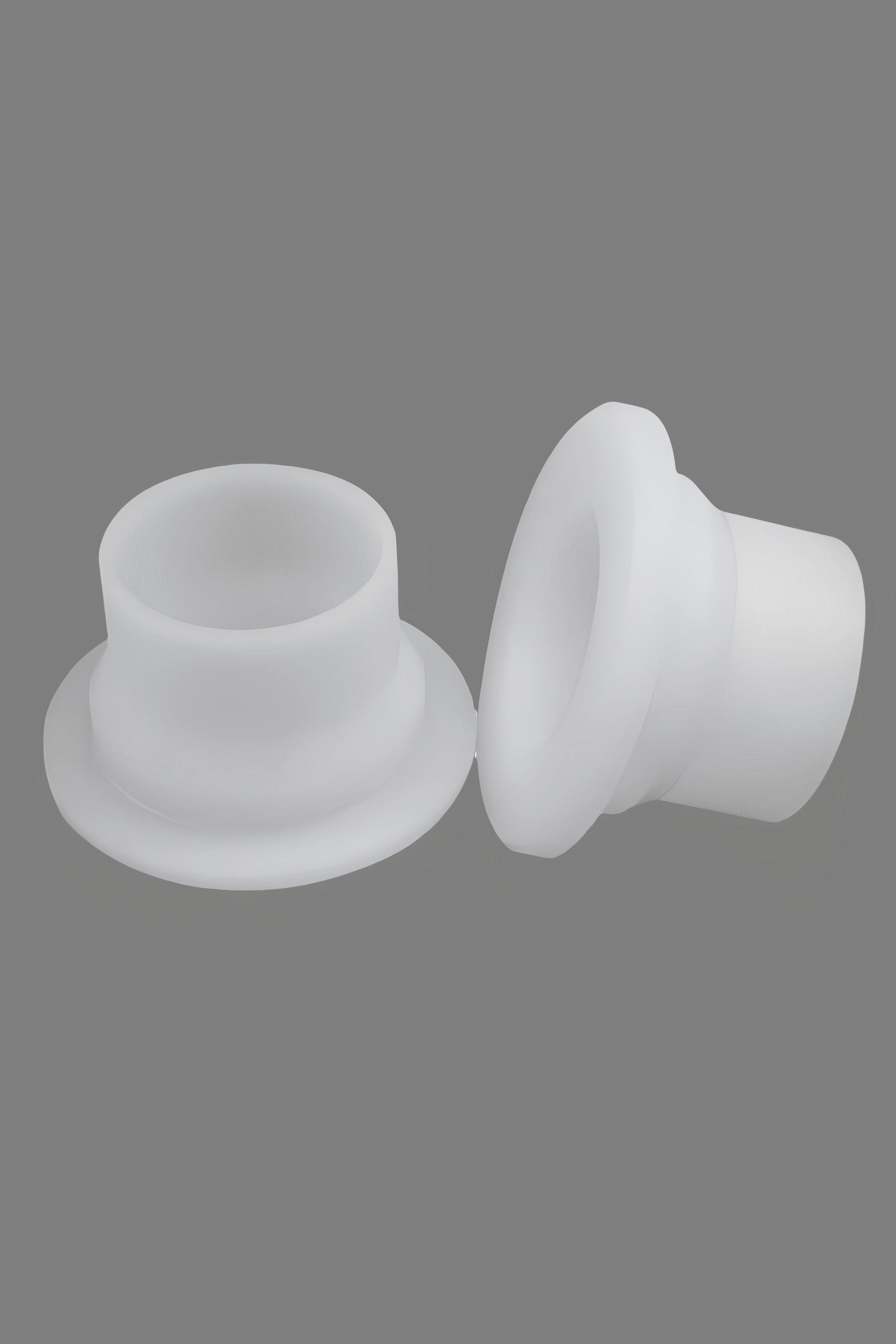

Our custom FEP molding services deliver precision-engineered solutions for unique applications. With 15-day lead times and low MOQ capabilities, we specialize in complex geometries including FEP sensor housing for pH meters and specialized flow cells for analytical instruments.
Custom FEP Molding Capabilities
| Capability | Specification | Lead Time | MOQ |
|---|---|---|---|
| Complex Geometries | Multi-level, undercuts, threads | 15-25 days | 100 pieces |
| Precision Tolerances | ±0.01mm (ISO 2768-mK) | 15-20 days | 50 pieces |
| Insert Molding | Metal, ceramic inserts | 20-30 days | 200 pieces |
| Multi-Material | FEP + other polymers | 25-35 days | 500 pieces |
| Optical Quality | Clear, bubble-free | 20-25 days | 100 pieces |
| Micro Components | Down to 1mm features | 25-30 days | 1000 pieces |
| Large Parts | Up to 300mm diameter | 30-40 days | 10 pieces |
| Prototype Development | Single cavity tooling | 10-15 days | 5 pieces |
Custom FEP Molding Case Study

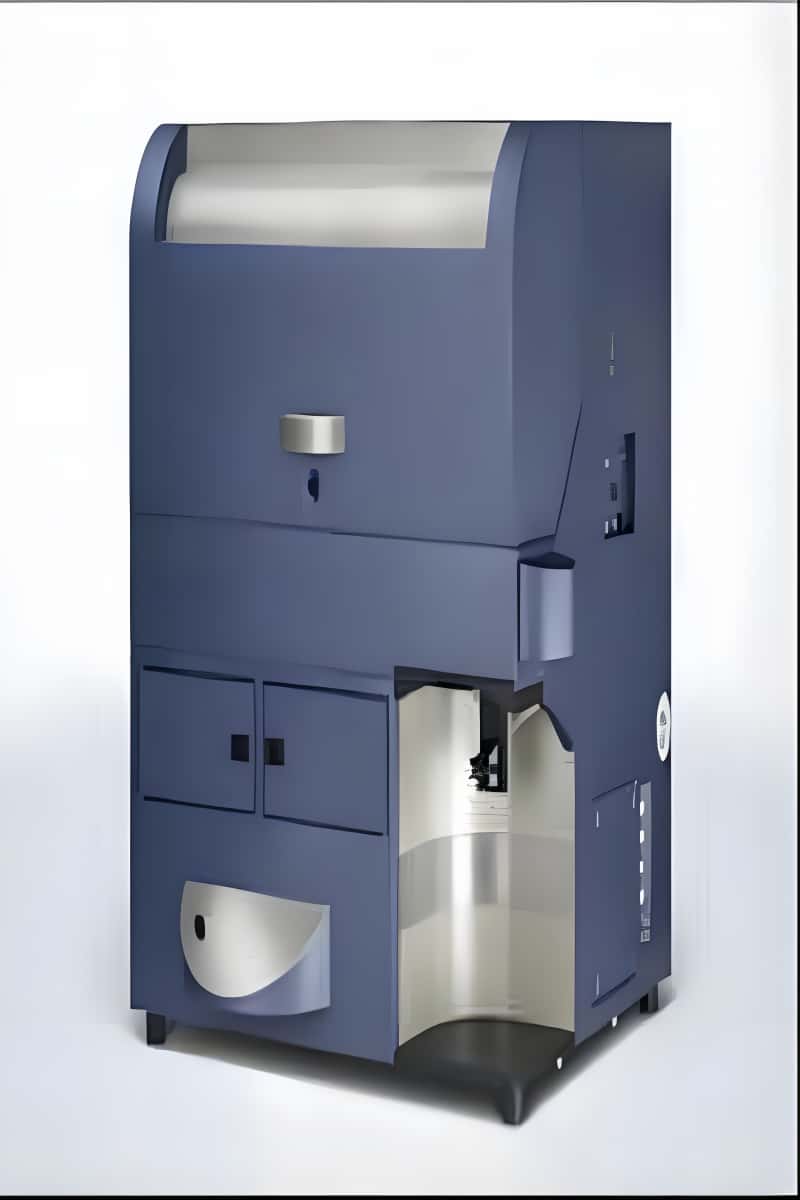

Custom FEP Flow Cell for Blood Analyzers
Challenge:
Medical device manufacturer needed precision flow cell with optical clarity and biocompatibility for blood analysis equipment.
Solution:
Custom-designed FEP flow cell with integrated optical windows, ±0.005mm tolerance, USP Class VI certified.
Results:
Lead time: 15 days | MOQ: 50 pieces | 99.8% optical clarity
Custom FEP Molding Applications
- Medical device flow cells and sensor housings
- Analytical instrument optical components
- Semiconductor process equipment parts
- Chemical processing specialized fittings
- High-voltage electrical insulators
- Food processing custom sealing solutions
Why FEP Outperforms PTFE in Valve Seats?
Comprehensive performance comparison demonstrates FEP's superior durability and chemical resistance in demanding valve seat applications, particularly in HCl environments where FEP delivers 3x longer service life.
FEP vs PTFE Performance Data
| Performance Parameter | FEP | PTFE | FEP Advantage |
|---|---|---|---|
| HCl Service Life (37%, 80°C) | 36 months | 12 months | 3x longer |
| Dimensional Stability | ±0.01mm over 2 years | ±0.05mm over 2 years | 5x more stable |
| Chemical Permeation | 0.02 g/m²/day | 0.15 g/m²/day | 7.5x lower |
| Creep Resistance | 0.5% @ 150°C, 1000h | 2.1% @ 150°C, 1000h | 4x better |
| Optical Clarity | 92% transmission | Opaque | Visual inspection |
| Processing Temperature | 260-280°C | 380-400°C | Lower energy cost |
| Melt Flow Rate | 15-25 g/10min | Not applicable | Better moldability |
| Surface Finish | Ra ≤ 0.2 μm | Ra ≤ 0.8 μm | 4x smoother |
Service Life Comparison of PTFE Valve Seats and FEP Valve Seats in Aggressive Chemicals
PTFE Valve Seats
FEP Valve Seats
Key FEP Advantages
Superior Chemical Resistance
Lower permeation rates in aggressive chemicals
Better Dimensional Stability
Minimal creep and deformation under stress
Optical Transparency
Visual inspection of internal conditions
Easier Processing
Lower molding temperatures reduce energy costs
Cost-Saving Design Tips of FEP components
Optimize your FEP component designs for maximum cost efficiency while maintaining performance. Our engineering team provides design guidelines that can reduce material usage by up to 20% without compromising functionality.
Wall Thickness Optimization
Standard Design
Material usage: 100%
Cost: Baseline
Optimized Design
Material usage: 80%
Cost: 20% reduction
Design Guidelines for Cost Optimization
Wall Thickness
Recommended: 1.5-3.0mm
Benefit: Reduces material by 15-25%
Consideration: Maintain structural integrity
Draft Angles
Recommended: 0.5-1.0°
Benefit: Easier demolding, less wear
Consideration: Improves tool life by 30%
Undercuts
Recommended: Minimize or eliminate
Benefit: Reduces tooling cost by 40%
Consideration: Use side actions only when necessary
Surface Finish
Recommended: SPI-A2 or coarser
Benefit: Reduces tooling cost by 20%
Consideration: Specify only where needed
Tolerances
Recommended: ±0.05mm standard
Benefit: Reduces inspection cost
Consideration: Tighten only critical dimensions
Part Consolidation
Recommended: Combine multiple parts
Benefit: Reduces assembly cost by 50%
Consideration: Maintain functionality
Real Cost Saving Examples
Sensor Housing Redesign
Original: 3-piece assembly
Optimized: Single molded part
Savings: 45% cost reduction
Valve Seat Optimization
Original: 5mm wall thickness
Optimized: 3mm with ribs
Savings: 30% material reduction
Flow Cell Simplification
Original: Complex undercuts
Optimized: Split-line design
Savings: 35% tooling cost
ISO 13485 Certified Manufacturing of FEP Molding Parts
Our state-of-the-art FEP molding factory China maintains the highest quality standards with ISO 13485 certification for medical device manufacturing. Advanced injection molding equipment and comprehensive quality control ensure consistent production of precision FEP molded parts.
Precision Injection Molding
Advanced molding equipment for complex FEP components
- ±0.01mm dimensional tolerance capability
- Multi-cavity precision tooling
- Automated quality monitoring
Clean Room Assembly
ISO Class 8 clean room for medical device components
- Contamination-free handling
- USP Class VI compliance
- Sterile packaging available
Quality Testing
Comprehensive testing and validation laboratory
- Dimensional inspection (CMM)
- Chemical resistance testing
- Electrical property validation
Design Engineering
Expert design support for custom FEP components
- 3D modeling and simulation
- DFM (Design for Manufacturing)
- Rapid prototyping services
Quality Certifications & Standards of Custom FEP Parts
Our FEP molded parts meet the highest international quality standards and industry-specific certifications, ensuring reliable performance and regulatory compliance for medical, semiconductor, and chemical processing applications.
ISO 13485:2016
Medical device quality management system for precision FEP components
USP Class VI
Biocompatibility testing for medical device applications
ISO 10993
Biological evaluation of medical devices for patient safety
ISO 2768-mK
Dimensional tolerance standards for precision molded components
