Semi-finished PVDF products Manufacturer
Semi-finished PTFE products like PVDF sheet, PVDF rod, PVDF tube are widely used in the chemical industry, water treatment and other industries because of their superior performance.
Semi-Finished PVDF Products for Industrial Applications
We are a leading manufacturer of high-performance semi-finished PVDF (Polyvinylidene Fluoride) products.Our range of semi-finished PVDF products provides the foundational material for manufacturing durable, corrosion-resistant components. We offer PVDF in versatile forms such as PVDF sheet, PVDF rod, PVDF pipe, PVDF film and PVDF plate, ready for precision machining into final parts. Our PVDF materials offer exceptional chemical resistance, superior weatherability, and high purity, making them ideal for demanding applications in chemical processing, semiconductor manufacturing, architectural, and pharmaceutical industries.
Chemical Resistance
Outstanding resistance to acids, bases, and organic solvents
UV Stability
Excellent weatherability and UV resistance for outdoor applications
High Purity
Ultra-pure grades available for semiconductor and pharmaceutical use
Temperature Range
Operating temperature from -40°C to +150°C continuous use

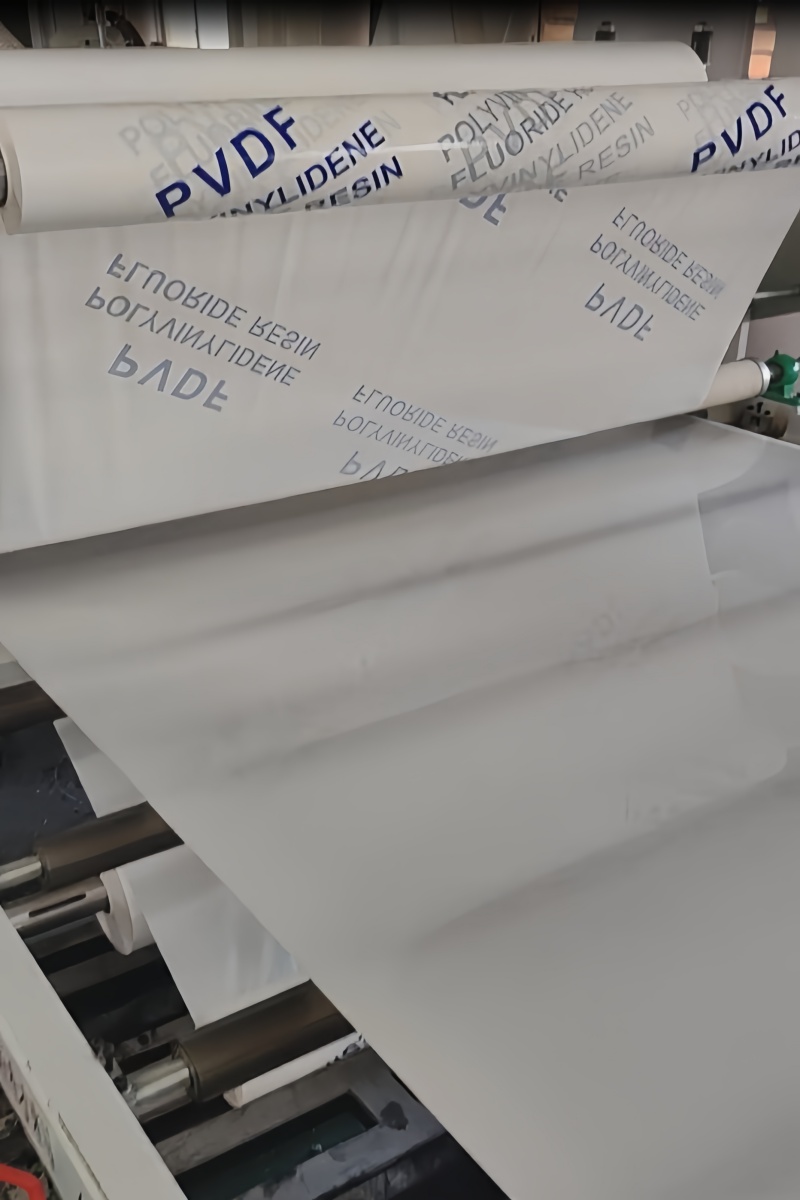

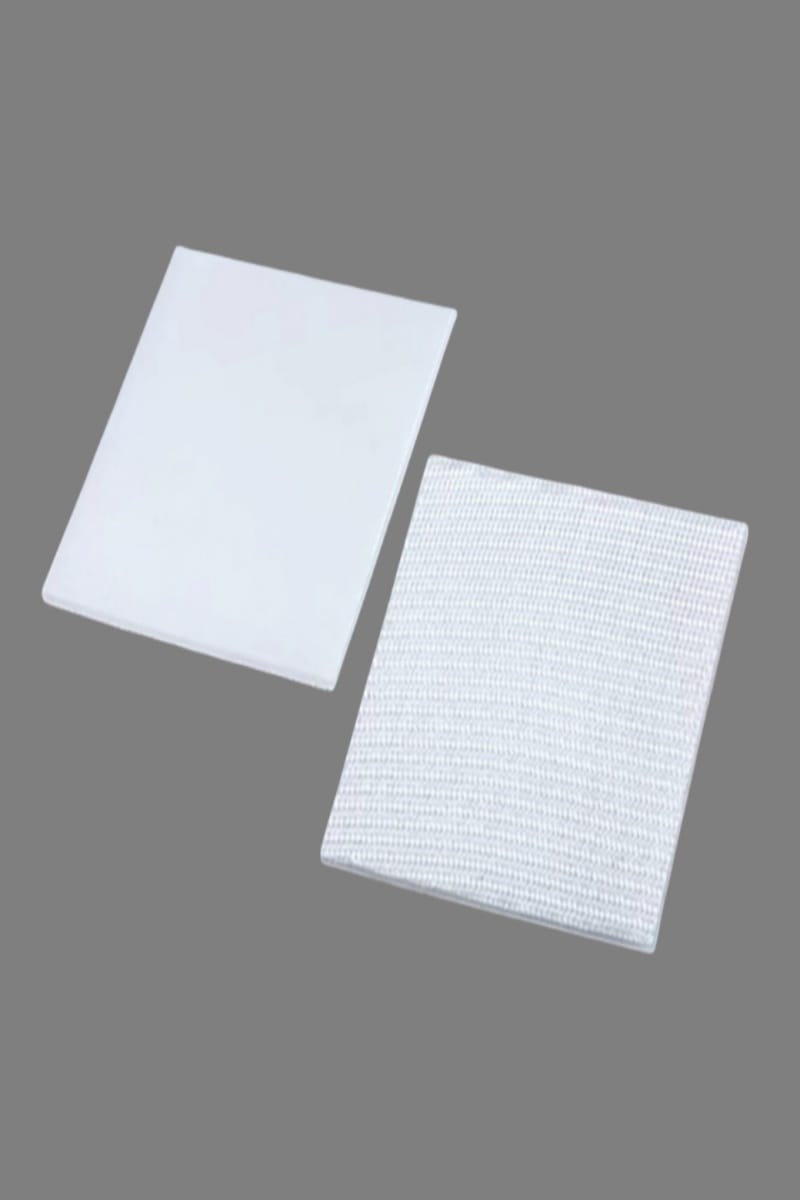

PVDF Sheet - High-Performance Polyvinylidene Fluoride Sheets
Our PVDF sheets are manufactured using premium virgin PVDF resin, offering exceptional chemical inertness and mechanical strength. Available in various thicknesses and sizes for custom fabrication and industrial applications requiring superior chemical resistance and weatherability.
PVDF Sheet Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Thickness Range | 1mm - 50mm | Custom cutting available |
| Standard Sizes | 1000×2000mm, 1220×2440mm | Custom sizes available |
| Density | 1.76-1.78 g/cm³ | ASTM D792 |
| Tensile Strength | ≥45 MPa | ASTM D638 |
| Flexural Modulus | ≥2000 MPa | ASTM D790 |
| Operating Temperature | -40°C to +150°C | Continuous use |
| Dielectric Strength | ≥20 kV/mm | ASTM D149 |
| Water Absorption | ≤0.04% | ASTM D570 |
PVDF Sheet Industrial Applications
- Chemical processing equipment linings and tanks
- Semiconductor manufacturing components and wafer carriers
- Architectural cladding and weatherable exterior panels
- Pharmaceutical equipment and clean room applications
- Electrochemical cell components and battery separators
- Food processing equipment requiring FDA compliance
Available PVDF Sheet Grades
Standard Grade
General purpose PVDF for chemical resistance applications
High Purity Grade
Ultra-pure PVDF for semiconductor and pharmaceutical use
Conductive Grade
Carbon-filled PVDF for anti-static applications
Glass Filled Grade
Reinforced PVDF for enhanced mechanical properties

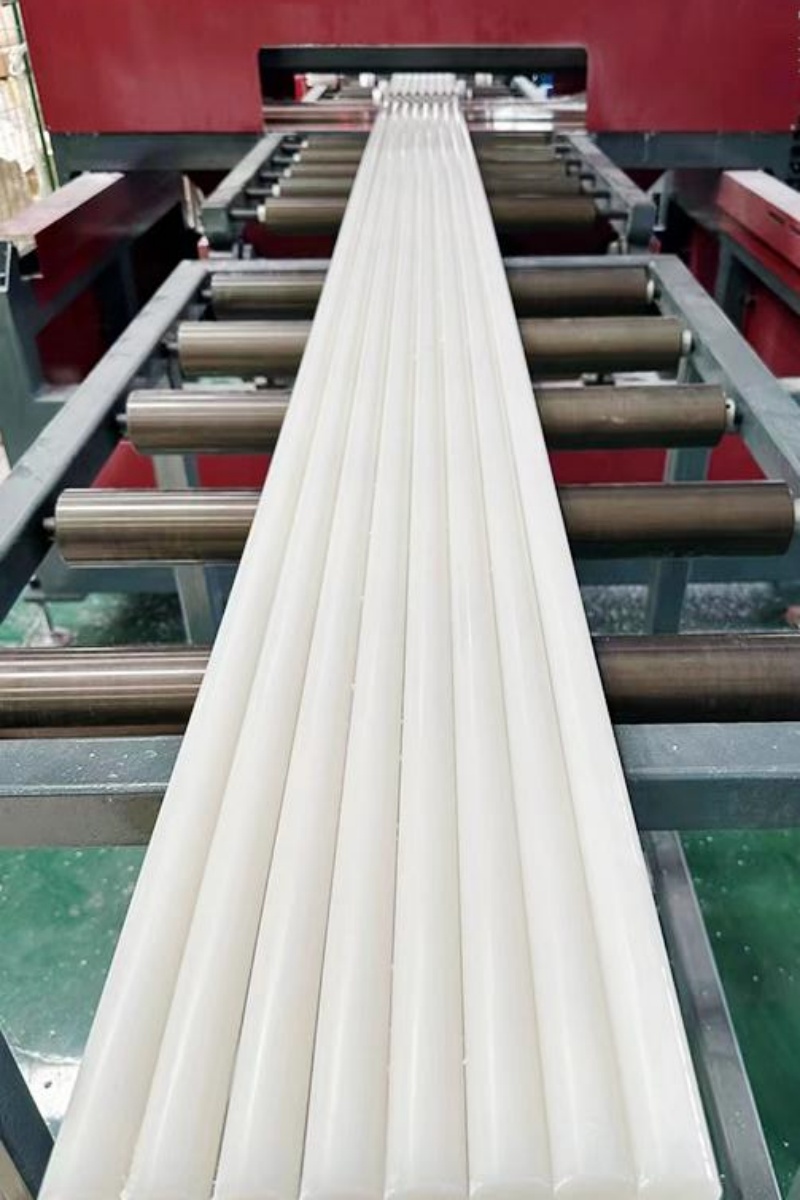

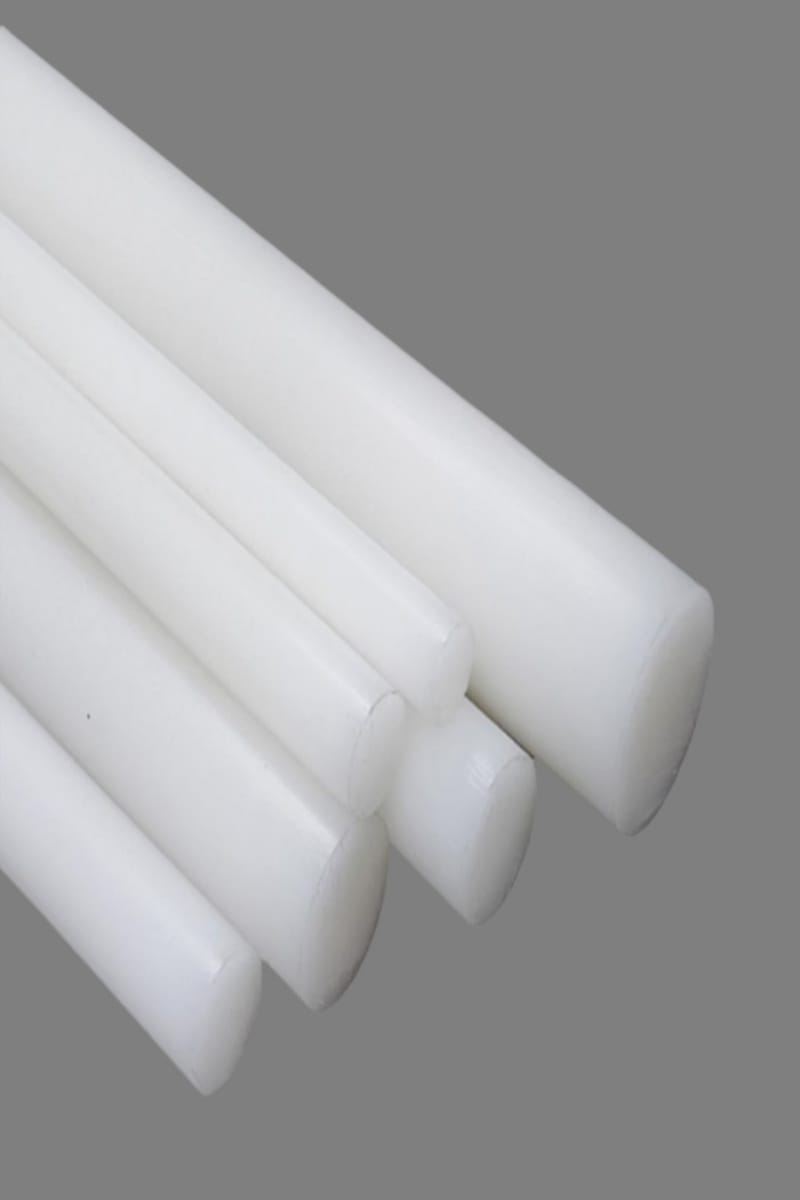

PVDF Rod - Precision Machined Polyvinylidene Fluoride Rods
High-performance PVDF rods manufactured through precision extrusion and machining processes. Our PVDF rods offer excellent dimensional stability, superior chemical resistance, and outstanding machinability for custom component fabrication in demanding industrial environments.
PVDF Rod Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Diameter Range | 6mm - 200mm | Custom diameters available |
| Standard Lengths | 1000mm, 2000mm, 3000mm | Cut to length service |
| Diameter Tolerance | ±0.1mm to ±0.3mm | Depending on diameter |
| Compressive Strength | ≥80 MPa | ASTM D695 |
| Impact Strength | ≥10 kJ/m² | ASTM D256 |
| Hardness | 75-85 Shore D | ASTM D2240 |
| Coefficient of Friction | 0.15-0.25 | Static/Dynamic |
| Thermal Conductivity | 0.19 W/m·K | ASTM C177 |
PVDF Rod Industrial Applications
- Valve components and pump impellers for chemical processing
- Semiconductor process equipment parts and fixtures
- Electrical insulators and high-voltage components
- Chemical reactor internals and mixing elements
- Precision machined components for analytical instruments
- Bearing materials for corrosive environments
Custom PVDF Rod Machining Services
CNC Machining
Precision CNC turning and milling to tight tolerances
Threading
Internal and external threading services
Drilling & Boring
Precision hole drilling and boring operations
Surface Finishing
Polishing and surface treatment services

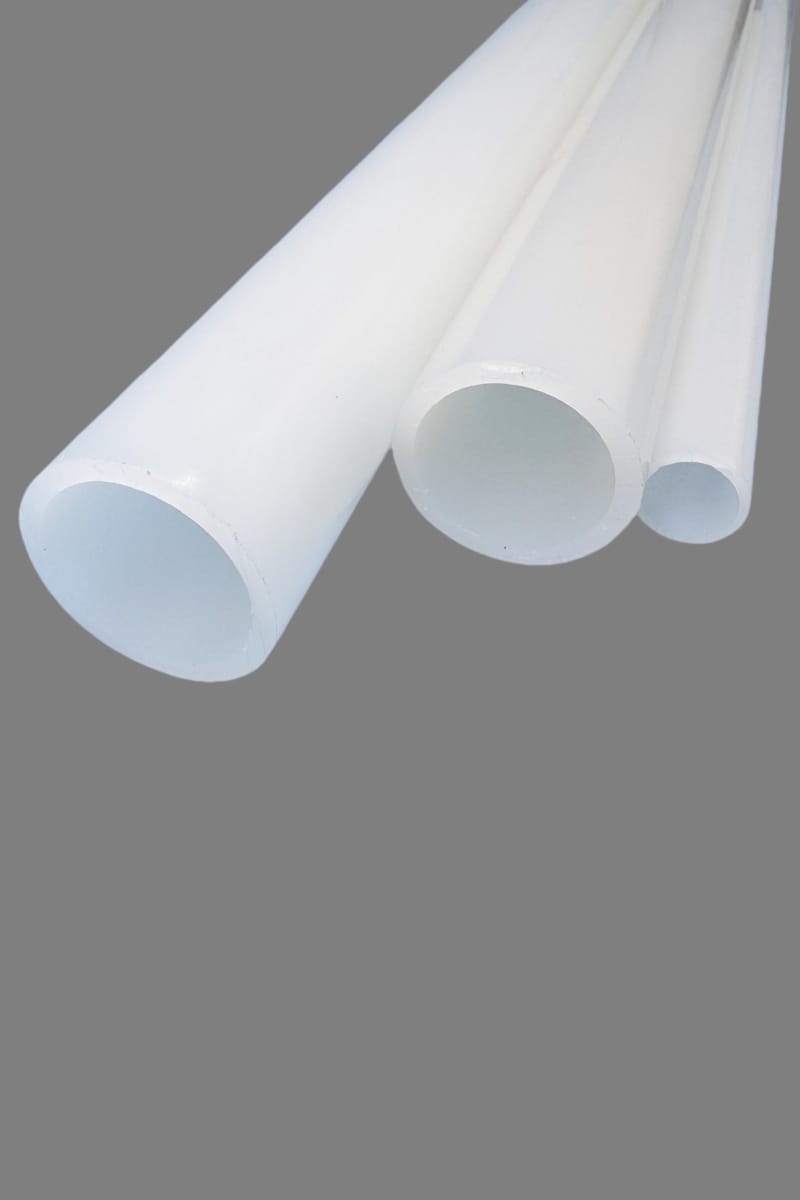

PVDF Tube - High-Purity Polyvinylidene Fluoride Tubing

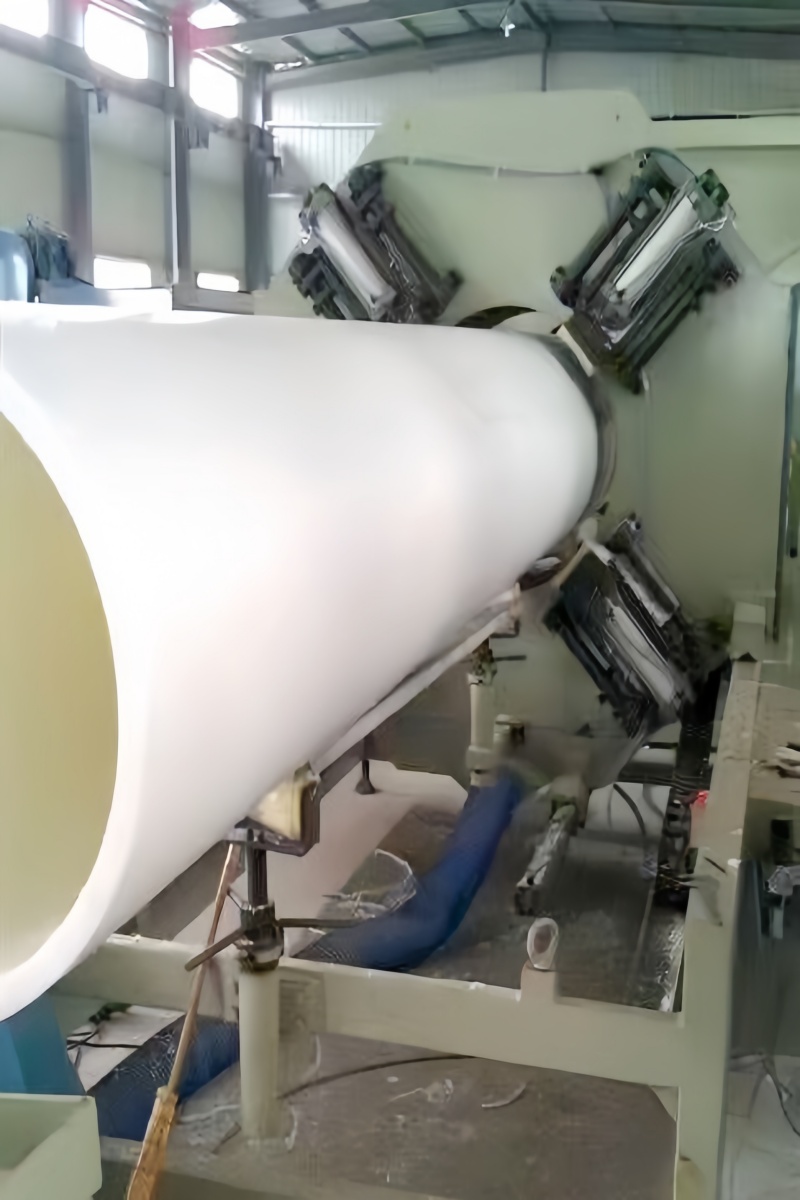

Premium PVDF tubes manufactured through advanced extrusion technology, offering exceptional chemical compatibility and purity. Our PVDF tubing solutions are ideal for fluid handling applications in semiconductor, pharmaceutical, and chemical processing industries where contamination control is critical.
PVDF Tube Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Inner Diameter | 2mm - 150mm | Custom sizes available |
| Wall Thickness | 1mm - 15mm | Various thickness options |
| Standard Lengths | 1m, 2m, 3m, 6m | Continuous lengths up to 50m |
| Working Pressure | Up to 25 bar | At 20°C |
| Burst Pressure | 4:1 Safety factor | Hydrostatic test |
| Surface Roughness | Ra ≤ 0.8 μm | Internal surface |
| Extractable Ions | ≤10 ppb | High purity grade |
| Permeability | Low gas permeation | Excellent barrier properties |
PVDF Tube Industrial Applications
- Semiconductor wet process equipment and chemical delivery systems
- Pharmaceutical manufacturing and bioprocessing applications
- Chemical transfer lines for aggressive media handling
- Laboratory and analytical equipment fluid connections
- Electroplating and surface treatment process lines
- High-purity water systems and ultrapure applications
PVDF Tube Purity Grades
Standard Purity
General chemical processing applications
99.5% purityHigh Purity
Pharmaceutical and biotech applications
99.9% purityUltra High Purity
Semiconductor and microelectronics
99.99% purityPVDF vs Other Engineering Plastics
Compare the superior properties of PVDF (Polyvinylidene Fluoride) against other engineering plastics for demanding industrial applications.
| Property | PVDF | PTFE | PFA | PEEK |
|---|---|---|---|---|
| Chemical Resistance | Excellent | Excellent | Excellent | Good |
| Mechanical Strength | High | Low | Medium | Very High |
| UV Resistance | Excellent | Good | Good | Poor |
| Machinability | Excellent | Difficult | Good | Good |
| Cost Effectiveness | High | Medium | Low | Low |
Quality Certifications & Standards of Semi-finished PVDF Products
Our PVDF products like PVDF sheet, PVDF rod, PVDF tube meet the highest international quality standards and certifications for various industrial applications.
ISO 9001:2015
Quality Management System certification ensuring consistent product quality
FDA Compliance
Food contact approved grades meeting FDA 21 CFR 177.2600 requirements
USP Class VI
Biocompatibility certification for pharmaceutical and medical applications
SEMI Standards
Semiconductor industry standards compliance for ultra-pure applications
Technical Support & Services of PVDF sheet, PVDF rod, PVDF tube
Material Selection
Expert guidance on PVDF grade selection for specific applications
Custom Fabrication
Precision machining and fabrication services for complex components
Technical Documentation
Comprehensive material data sheets and application guides
Quality Testing
Complete material testing and certification services
